Cebek Fuzz Box for Electric Guitar



Cebek Fuzz Box for Electric Guitar

Specifications:
Reference PM-13

Input 50 - 300mV
Output Impedance 300mV
Consumption (Max) 100mA
Power Supply 9 - 15VDC
Dimensions 74 x 47 x 15mm
Weight 36g
Technical Information > Download the Handbook for full specifications and applications

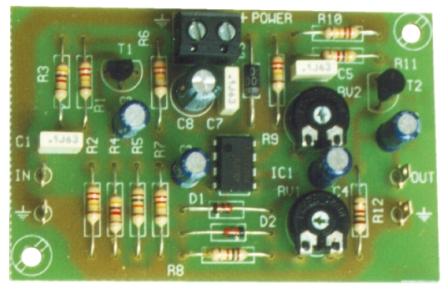

The Cebek PM-13 module is a mono pre-amplifier with “Fuzzybox” function for an electrical guitar. It basically offers two effects; signal limitation and harmonics generator. Both combined offer a better sound for an electrical guitar. The module includes two potentiometers, “Signal limitation” which increases the parameter if you turn to the right. The potentiometer indicated as “harmonics generators”, operates in the same way, injecting harmonics in to the output signal when you turn it to the right.

Related Products::
Power Supply FE-71



Order Code   Each
PM-13 Cebek Fuzz Box for Electric Guitar 6.64
