Cebek 9V Power Supply 300mA



Cebek 9V Power Supply 300mA

 0 - 9 - 12v 3.6VA Transformer
Specifications:
Reference FE-71

Output 9VDC@300mA
Ripple 5mV
Power Supply 230VAC
Dimensions
PCB 54 x 44 x 20mm
Transformer 70 x 30 x 40mm
Weight 240g
Technical Information > Download the Handbook for full specifications and applications

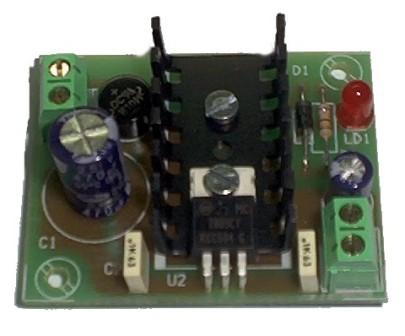

The Cebek FE-71 module is a single rail 9VDC stabilized power supply. It can deliver a maximum of 300mA, the output is fully regulated and short circuit protected. The FE-71 module includes connection terminals to facilitate assembly and LED to indicate its operating. The suitably rated transformer is also included in the price for this Cebek module.


Related Products::



Order Code   Each
FE-71 Cebek 9V Power Supply 300mA 9.97
