  Cebek Electronic Kits

Cebek Magnetic Pick Up Pre-Amp


Cebek Magnetic Pick Up Pre-Amp
Specifications:
Reference P-4
Frequency Response 20 - 20000Hz
THD 0.05%
Gain 80db
Crosstalk 60db
Input 5 - 100mV@47kΩ
Output Impedance 1kΩ
Consumption 25mA
Power Supply 12 - 24VDC
Dimensions 82 x 75 x 40mm
Weight 72g
Technical Information > Download the Handbook for full specifications and applications
DIN Rail Mount C-7563 >

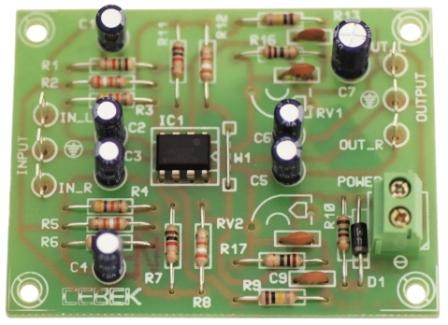

Cebek P-4 Stereo pre-amplifier with RIAA correction. It allows you to connect a magnetic pick-up capsule, to the auxiliary input of an amplifier or mixer.

Related Products::
Power Supply FE-6



Order Code   Each
P-4 Cebek Magnetic Pick Up Pre-Amp 11.77
