Cebek 12VDC Thermostat 60 - 150ºC



Cebek 12VDC Thermostat 60 - 150ºC
Specifications:
Reference I-81
Temperature Range -10 to 60ºC
Hysteresis 0.5º
Relay 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 65 x 45 x 30mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

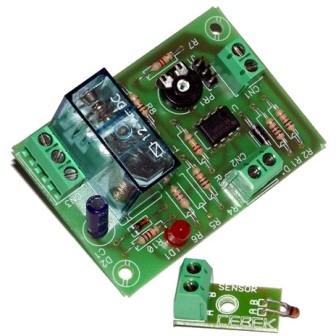

The Cebek I-81 module is a 12VDC thermostat with an operating range of between 60 to 150 ºC. The module will activate the relay output when the temperature reaches the desired value. The temperature adjustment is made using a potentiometer mounted on the PCB. It also includes a indicator LED and connector to substitute for an external potentiometer.

Related Products::
Power Supply FE-103
Temperature Probe AC-3

Order Code   Each
I-81 Cebek 12VDC Thermostat 60 - 150ºC 11.81
