Cebek 12VDC Thermostat -10 - 60C



Cebek 12VDC Thermostat -10 - 60C

Specifications:
Reference I-8
Temperature Range -10 to 60C
Hysteresis 0.5
Relay 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 65 x 45 x 30mm
Weight 54g
Technical Information > Download the Handbook for full specifications and applications

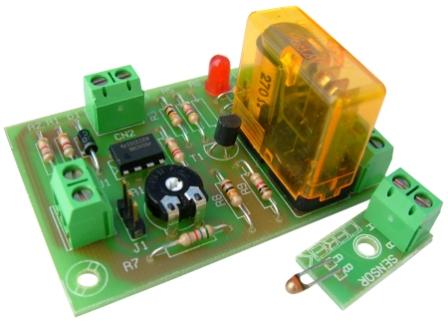

The Cebek I-8 module is a 12VDC thermostat operating in the range of -10 to 60 C. The module will activate the relay output when the temperature reaches the desired value. The temperature adjustment is made using a potentiometer mounted on the PCB. It also includes a indicator LED and connector to substitute for an external potentiometer.

Related Products::
Power Supply FE-103
Temperature Probe AC-3


Order Code   Each
I-8 Cebek 12VDC Thermostat -10 - 60C 10.29
