Cebek Digital Timer 0.1s - 60 minutes

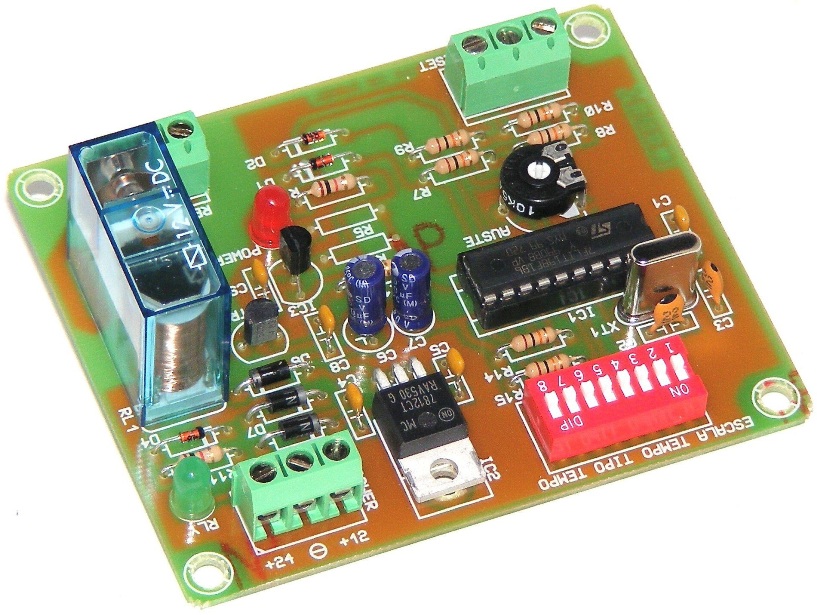

I-300 Digital Timer Module
Specifications:
ReferenceI-300
Range0.1s - 60min
Relay OutputSPST 5A
Consumption65mA
Power Supply12 or 24VDC
Dimensions87 x 72 x 26mm
Weight54g
Technical Information >Download the Handbook for full specifications and applications
Watch a Movie Clip >
The Cebek I-300 is a digital timer which offers more accuracy and versatility over standard timers. The I-300 has 14 operating modes (See manual for full configuration). For example it can be set as a Monostable, Delayed Start and Start on Power up with each of these modes also allowing for reset and re-trigger applications. The I-300 has 16 time settings which offer precise timing options:


Timer Options:

1.

0 - 10 Seconds

2.

10 - 20 Seconds

3.

20 -30 Seconds

4.

30 - 40 Seconds

5.

40 - 50 Seconds

6.

50 - 60 Seconds

7.

1 - 2 Minutes

8.

2 - 4 Minutes

9.

4 - 6 Minutes

10.

6 - 8 Minutes

11.

8 - 10 Minutes

12.

10 - 20 Minutes

13.

20 - 30 Minutes

14.

30 - 40 Minutes

15.

40 - 50 Minutes

16.

50 - 60 Minutes

The operating modes and timer settings are adjusted by the PCB mounted DIP switches and a preset potentiometer. The Relay has LED to give visual indication when activated.


Related Products::
Power SupplyFE-103


Order Code Each
I-300Cebek Digital Timer 0.1s - 60 minutes22.68
