Cebek Digital Timer



Cebek Digital Timer

Specifications:
Reference I-203
Range 1s - 100m or 1m 100hours
Relay Output 3A
Consumption 250mA
Power Supply 12VDC
Dimensions 76 x 43 x 30mm
Weight 154g
Technical Information > Download the Handbook for full specifications and applications
Watch a Movie Clip >

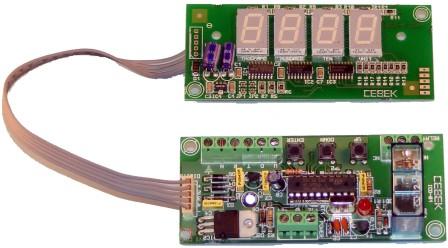

The Cebek I-203 is a programmable timer with quartz oscillator and 0.5" display. It has one relay output with the possibility to select a time on two scales. A./ From 1second to 99 minutes 59 seconds and B./ From 1 minute to 99 hours 59 minutes. The program is selected with BCD switches. The relay will be activated when the operating time reaches the selected value, then the output is disconnected.

Related Products::
Power Supply FE-113
Housing C-7492

Order Code   Each
I-203 Cebek Digital Timer 45.41
