Cebek 24V Power Supply 400mA



Cebek 24V Power Supply 400mA

Specifications:
Reference FE-125

Output 24VDC@400mA
Ripple 5mV
Power Supply 230VAC
Dimensions 72 x 99 x 40mm
Weight 442g
Technical Information > Download the Handbook for full specifications and applications

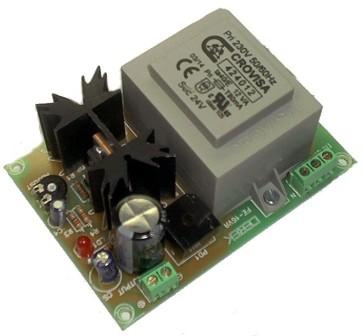

The Cebek FE-125 module is a single rail 24VDC stabilized power supply. It can deliver a maximum of 400mA, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (22 - 27VDC), to allow for long cable runs and supply voltage variations. The FE-125  module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-125 Cebek 24V Power Supply 400mA 12.96
