  Cebek Electronic Kits

Cebek 5V Power Supply 450mA



Cebek 5V Power Supply 450mA

Specifications:
Reference FE-111

Output 5VDC@450mA
Ripple 5mV
Power Supply 230VAC
Dimensions 75 x 65 x 35mm
Weight 268g
Technical Information > Download the Handbook for full specifications and applications

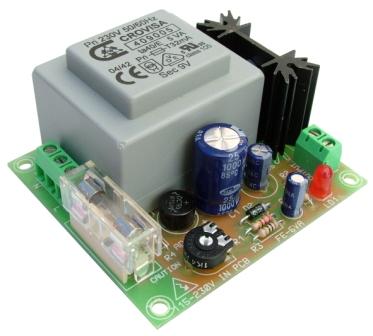

The Cebek FE-111 module is a single rail 5VDC stabilized power supply. It can deliver a maximum of 450mA, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (3 - 8VDC), to allow for long cable runs and supply voltage variations. The FE-111 module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-111 Cebek 5V Power Supply 450mA 10.20
