Cebek 4-Digit Up/Down Counter



Cebek 4-Digit Up/Down Counter

Specifications:
Reference CD-7
LED Display 4-Digit 20mm
Range 0 - 9999
Consumption 350mA
Power Supply 12VDC
Dimensions 110 x 65 x 55mm
Weight 136g
Technical Information > Download the Handbook for full specifications and applications

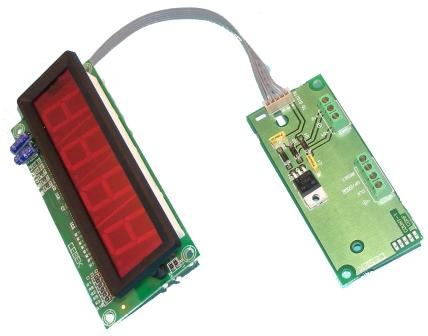

The Cebek CD-7 module is a 4-digit standard counter, with large 20mm LED display. It can count up from 0 to 9999 when it receives impulses from a closing contact on the signal input like a push button or switch or by injecting an external signal (12VDC). The module also has the facility, by throwing a switch, to count down from the displayed count. The module also has a reset signal input, which allows you to reset the count at any time.

Related Products::
Power Supply FE-123



Order Code   Each
CD-7 Cebek 4-Digit Up/Down Counter 33.17
