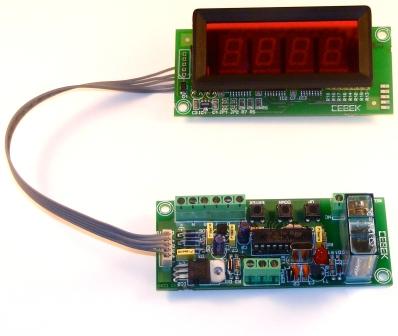

Cebek 4-Digit Up/Down Counter with Pre-Selector


Cebek 4-Digit Up/Down Counter with Pre-Selector
Specifications:
Reference CD-5
LED Display 4-Digit 13.5mm
Range 0 - 9999
Relay 5A
Consumption 180mA
Power Supply 12VDC
Dimensions 95 x 68 x 45mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications
The Cebek CD-5 module is a 4-Digit count up and count down with pre-selection and relay outputs. Thanks to a switch you could count up or count down impulses from a closing contact on the signal input or by injecting external 12VDC signal. Count up function allows you to pre-select a number and once this number reach, the count up will be stopped and the relay is activated.

Related Products::
Power Supply FE-113
Housing C-7492


Order Code   Each
CD-5 Cebek 4-Digit Up/Down Counter with Pre-Selector 40.85
