Cebek 6-Digit Up/Down Counter



Cebek 6-Digit Up/Down Counter

Specifications:
Reference CD-4
LED Display 6-Digit 13.5mm
Range 0 - 999999
Consumption 250mA
Power Supply 12VDC
Dimensions 153 x 65 x 45mm
Weight 142g
Technical Information > Download the Handbook for full specifications and applications

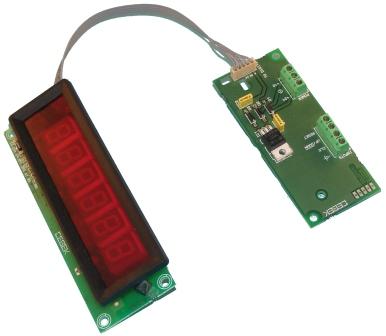

The Cebek CD-4 module is a 6-digit standard counter. It can count up from 0 to 999999 when it receives impulses from a closing contact on the signal input like a push button or switch or by injecting an external signal (12VDC). The module also has the facility, by throwing a switch, to count down from the displayed count. The module also has a reset signal input, which allows you to reset the count at any time.

Related Products::
Power Supply FE-123



Order Code   Each
CD-4 Cebek 6-Digit Up/Down Counter 33.43
