Cebek 2-Digit 100mm LED Counter



Cebek 2-Digit 100mm LED Counter

Specifications:
Reference CD-20
LED Display 2-Digit
Range 0 - 99
Consumption 300mA
Power Supply 12VDC
Dimensions 210 x 177 x 15mm
Weight 166g
Technical Information > Download the Handbook for full specifications and applications

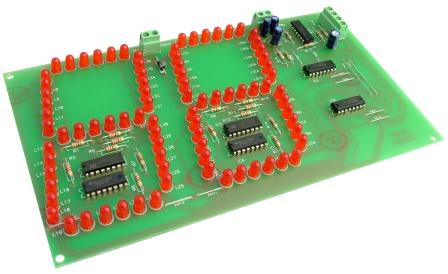

The Cebek CD-20 module is a 2-digit counter with a100mm display made up from 5mm LED's  It counts up from 0 to 99 when it receives impulses from a closing contact on the signal input like a push button or switch or injecting an external signal (12VDC). The module also has a reset signal input, which allows you to reset the count.

Related Products::
Power Supply FE-123



Order Code   Each
CD-20 Cebek 2-Digit 100mm LED Counter 34.24
