Cebek 6-Digit Standard Counter



Cebek 6-Digit Standard Counter

Specifications:
Reference CD-2
LED Display 3-Digit 13.5mm
Range 0 - 999999
Consumption 300mA
Power Supply 12VDC
Dimensions 120 x 66 x 42mm
Weight 180g
Technical Information > Download the Handbook for full specifications and applications

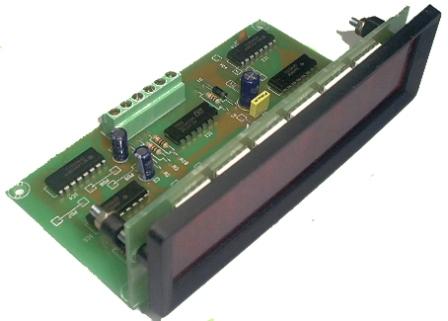

The Cebek CD-2 module is a 6-digit standard counter. It counts up from 0 to 999999 when it receives pulses on the signal input. Maximum frequency is 25Hz (Change capacitor C3 to 1F 63V and the frequency rate can be increased to 100hz) Input signal can be from a volts free source such as a relay contact or switch. The module also has a reset signal input, which allows you to reset the count back to zero.

Related Products::
Power Supply FE-123



Order Code   Each
CD-2 Cebek 6-Digit Standard Counter 24.99
