Velleman Velbus Dimmer Module for Inductive/Resistive Loads Velleman Kits

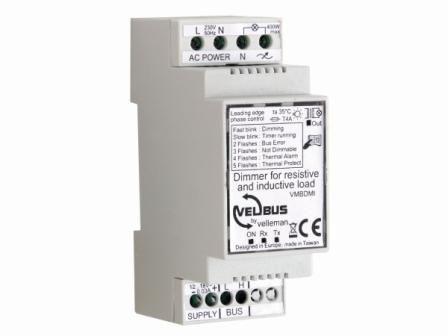

Velleman Velbus Dimmer Module for Inductive/Resistive Loads

Specification Features:

  • Power supply: 12VDC...18VDC
  • Consumption: 30mA
  • Required mains voltage: 220-240V/50Hz
  • Maximum load:
    • 400W @ 230V
  • Dimming from 0 to 100% in ca. 4 seconds
  • Suitable for:

    • incandescent lamps

    • mains voltage halogen lighting

    • low voltage halogen lighting in combination with a conventional (wire wound) transformer

    • some types of 230V dimmable led lamps

  • 250 possible addresses

  • Operation modes: dimming - slow on/off - timer - multistep dimmer - moods

  • Timer: 1s ... 3 days

  • Dimmer speed: 2s ... 23 hour
  • Push button input debounce: 65ms

  • Standard DIN-rail housing: 2 modules



Read the fully Illustrated Manual for VMBDMI

PDF Download

Power Supply

VMB3PS

Case



Dimensions

90 x 36 x 58mm

Weight

95g


1-channel 400W dimmer. Create an atmosphere which suits you best or let your lights dim slowly to avoid unexpected surprises. It is also possible to simulate a sunrise which makes waking up a lot more pleasant! Additional software to up grade and improve this product is available from the Velleman support section on there website.
Velbus Home Automation System for applications and examples of installations download introduction manual
Order Code   Each
VMBDMI Velleman Velbus Dimmer Module for Inductive/Resistive Loads 94.54
