Velleman Arduino
In/Out Shield |
|
|
Specification Features: |
- 6 relay outputs
- 6 analogue inputs
- 6 digital inputs
- Downloadable sample
sketch
- Stackable design: the
shield can be stacked with
other shields
- Large user community
- 1 A (max.) load per
output
- 120 V max. per output
- Uses pin 8 to 13 as
outputs, pin A0 to A5 as
analog inputs, and pin 2 to
7 as digital inputs
|
Data Sheet for WPSH05 |
|
Power Supply |
|
Case |
|
Dimensions |
70 x 55 x 30mm |
Weight |
kg |
|
|

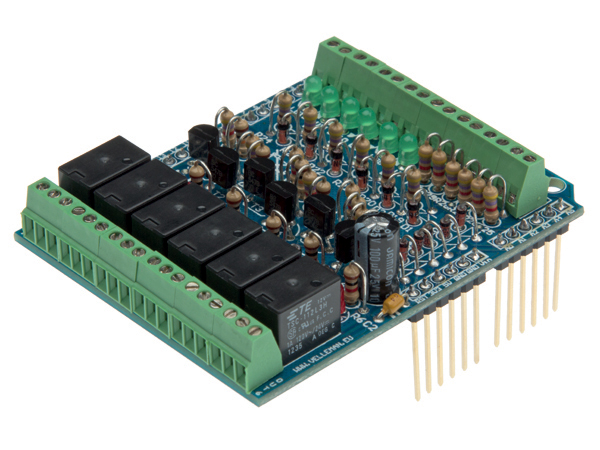

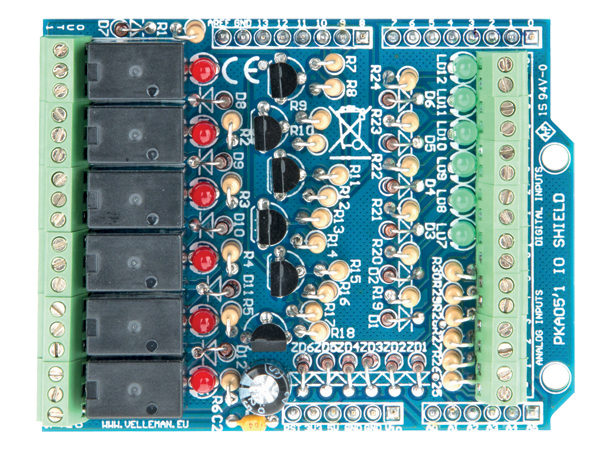

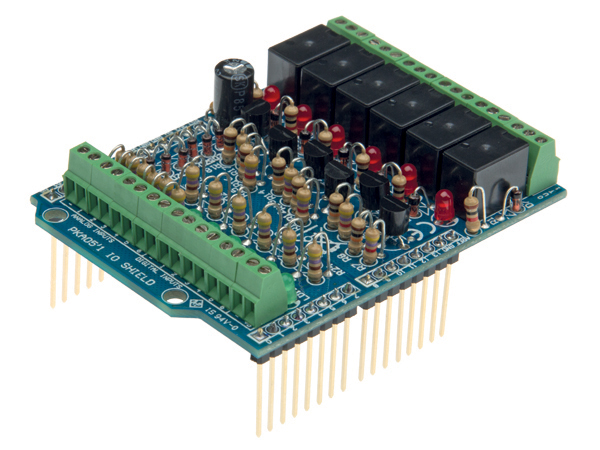

A simple plug in module (Shield) general purpose INPUT - OUTPUT module
for use with an Arduino™ UNO. (Arduino motherboard not
supplied).
Arduino-UNOR3 |
Order Code |
|
Each |
|
WPSH05 |
Velleman In/Out Shield for Arduino™ UNO Board |
25.85 |
|
|
