Velleman DRV8825 Stepper Motor Driver Board Velleman Kits

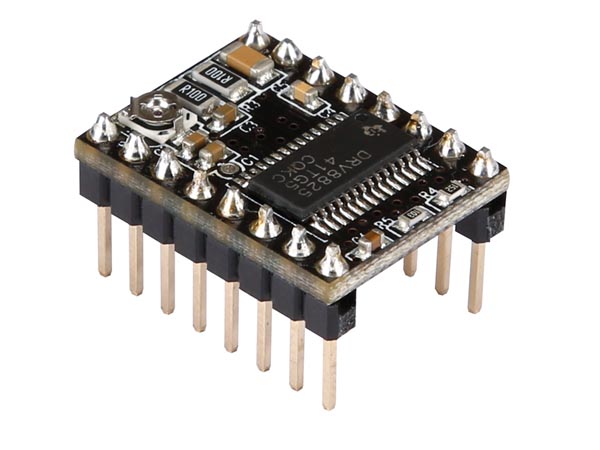

Velleman DRV8825 Stepper Motor Driver Board

Specification Features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Current adjust trimmer
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • Continuous current per phase: 1.5 A
  • Maximum current per phase: 2.2 A (with cooling)
  • Minimum logic voltage: 2.5 V
  • Maximum logic voltage: 5.25 V

Read the fully Illustrated Manual for VM8400DB

PDF Download

Power Supply

8.2 - 45Vdc (1.5A)

Case



Dimensions

20 x 15mm

Weight

kg


VM8400DB Breakout board for TI DRV8825 micro stepping bipolar stepper motor driver with adjustable current limiting, over-current and over-temperature protection and 6 microstep resolutions (down to 1/32-step). It allows you to control a bipolar stepper motor in a simple way.
Additional software to up grade and improve this product, and App is now available from the Velleman support section on there website.

Order Code   Each
VM8400DB Velleman DRV8825 Stepper Motor Driver Board 9.69
