Velleman WLAN DIN Rail Relay Module

Velleman VM208

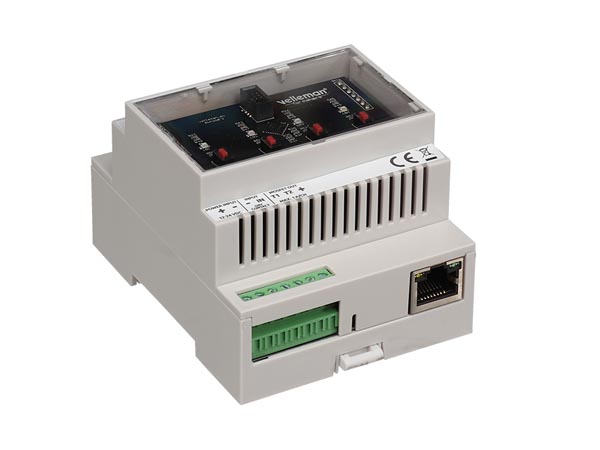

Velleman VM208 WLAN DIN Rail Relay Module

Specification Features:
  • Control up to 4+2 devices / appliances remotely from any location worldwide*
  • On / off / pulse (500 ms - 60 s), timer (1 - 720 min) & scheduler function per channel
  • Controllable by using a free app for your smartphone
  • DIN rail chassis for industrial mounting
  • Expandable with a special 8 relays slave module (VM208EX) (coming soon!)
  • e-mail notifications possible
  • 4 relay contacts: 16 A @ 230 V~ (peak)
  • 2 transistor outputs: 1 A @ 12-24 VDC
  • Inputs: 1 digital input (open collector compatible)
  • Wireless standard: Wi-Fi 2.4 GHz
  • Chipset: ESPRESSIF ESP32-WROVER-I

Read the fully Illustrated Manual for VM208

 PDF Download

Power Supply

12-24 VDC (min 12 W)

Case



Dimensions

72 x 90 x 58mm

Weight

kg

DIN rail WLAN relay card combines the strength of four robust relays that you can control via smartphone. In other words: this device enables you to remotely control any appliance in your electrical cabinet from anywhere in the world*!

For your convenience, we also added both wired (RJ45 socket) and wireless connections (SMA plug). There is one digital input that lets you monitor the state of any device and there are two additional transistor outputs that allow you to control 6 devices in total.


Once you've installed your relay card and connected it to your preferred appliance(s), you can install the app and scan your network to connect your app to your relay card. Tip: multiple relay cards, even the DIN-RAIL Extension Relay Card (VM208EX), can be connected to your app. To make a successful connection, you will simply need to select your relay card on the list and enter your credentials. After that, you will get an overview of all your relays or channels and you will be able to give them individual names. Each channel can now be controlled: you can turn it on or off, install a timer or pulse, schedule, and even send out an email notifications at specific events.


*Port forwarding required.
Find the open source firmware on https://github.com/Velleman/VM208

Order Code   Each
VM208 Velleman WLAN DIN Rail Relay Module 101.39
