Velleman IR RGB Tape Controller

Velleman IR RGB LED Controller

Velleman IR LED Controller (Remote)

Specification Features:

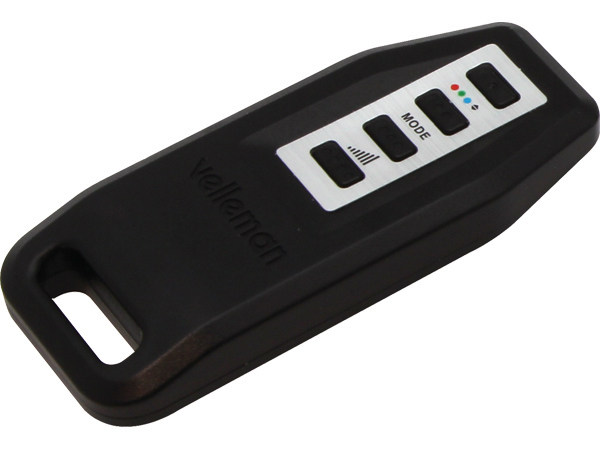

  • Includes one 4-channel infrared remote
  • IR module can be placed up to 1 m away
  • Colour, intensity and mode are retained and will be restored after a power
    failure
  • Speed determined by jumper setting
  • Can also be used as a single channel LED dimmer
  • Smooth manual scrolling through red-orange-yellow-green-blue-indigo-violet
    with up/down buttons
  • Fix a manually selected colour
  • Current: 2.5 A/channel max. (30W / 12Vdc, 60W / 24Vdc max.)
  • PWM frequency /resolution: 245 Hz, 10-bit
  • 32 Intensity levels
  • Colour loop time (R->G->B->R): 50 s, 1 min 40s, 2 min 30s, or 3 min 20s
  • Max. ambient temp: 30°C
  • Remote range: up to 10m (fresh battery, line of sight, no interference)
  • Remote power supply: V23GA 12 V battery (included)

Read the fully Illustrated Manual for VM192IR

PDF Download

Case

Supplied

Dimensions 88 x 37 x 13 mm (Remote)

Dimensions

80 x 70 x 23 mm (Controller)

Weight

kg

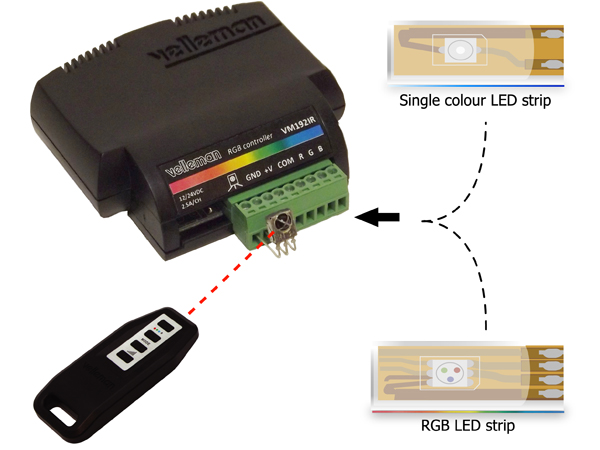

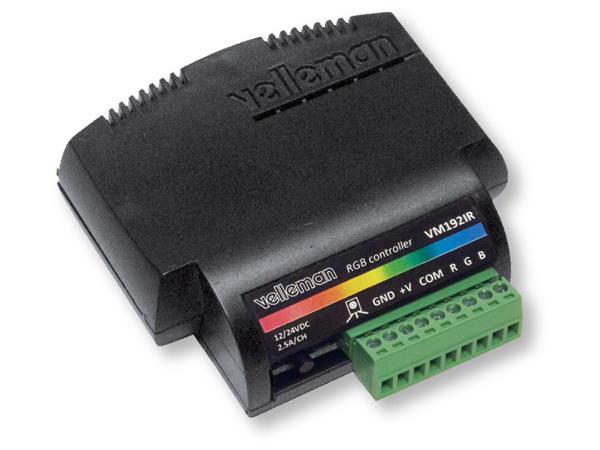

VM192IR is an infrared remote controlled RGB driver for 12 or 24 VDC LED tape. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust the intensity, regardless of the chosen colour or mode.
Order Code   Each
VM192IR Velleman Infrared LED Controller 19.99
