Velleman Proximity Card Reader ModuleVelleman Kits

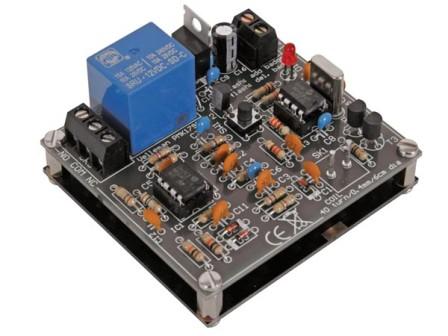

Velleman Proximity Card Reader Module

Specification Features:

  • Store up to 25 tags
  • Excellent security: 64-bit coded
  • Unlimited number of tags in low-security mode
  • Two tags supplied (card-type)
  • Easy addition and removal of tags
  • Output activation: 0.5s to 4min or toggle (ON/OFF)
  • Coil can be mounted away from the board (up to 5m) for higher security
  • Applications include:
    • open doors, fences, gates, etc...
    • arm/disarm security systems in homes / offices / vehicles etc...
    • Prevent unauthorised use of equipment, machinery, computer systems etc...
    • automate cat doors...

Read the fully Illustrated Manual for VM179

PDF Download





Case



Dimensions

66 x 62 x 20mm

Weight

kg


A simple module which has many applications, security systems in homes and offices or entry and exit door control. Using RFID technology a relay can be activated when card or fob is in close proximity (100mm) to the detection coil. Supplied with two cards, additional MK179-TAG and MK179-TAG2 style actuators are also available.
Order Code Each
VM179Velleman Proximity Card Reader Module21.95
