Velleman Panel Clock ModuleVelleman Kits

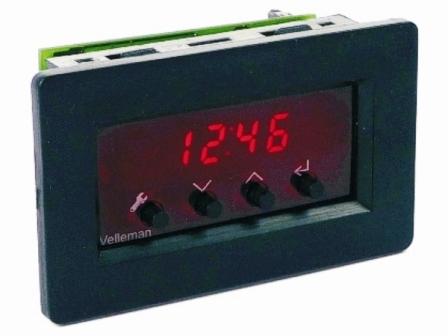

Velleman Panel Clock Module

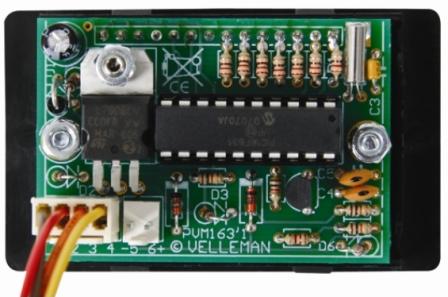

Velleman Panel Clock Module (PCB)



Specification Features:

  • 12h/24h selectable time readout
  • One daily program (1 on-time & off-time)
  • Bright red LED read-out
  • Quartz time base
  • Possibility to deactivate the screen (eg. for use in the car)
  • Backup battery connection
  • Alarm open collector output
  • Comes with easy board-to-wire connectors (20cm wire)
  • Power consumption: 60mA max. (8mA display blank)
  • Backup battery: external 4,5V (ex. 3 x AA not. Incl.)
  • "open collector" output: max. 24V / 100mA
  • Backup battery consumption: max. 200 ľA

Read the fully Illustrated Manual for VM163

PDF Download

Power Supply

9 - 15Vdc

Case



Dimensions

67 x 40.5 x 42mm (Cut Out 54 x 37mm)

Weight

kg


LED display panel clock for universal use. The clock features an "alarm" output which could be used to switch a light or similar appliance on or off. It also has an option to turn off the display for "in car" or to save battery life.

Order Code Each
VM163Velleman Panel Clock Module19.95
