Velleman 1W Power LED Driver ModuleVelleman Kits

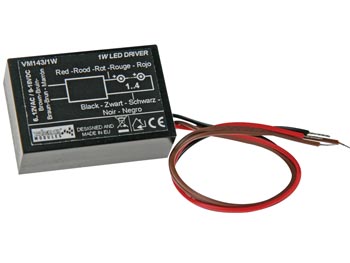

1W Power LED Driver Module

Specification Features:

  • Delivers accurate constant current required by most high power LED's
  • High efficiency due to switch mode principle
  • Built-in rectifier for easy connection to AC source
  • Compact size
  • Short circuit protected
  • No heatsink required
  • Also suited as fixed current NiCd/NiMH battery charge circuit
  • For home, disco, stage, education, architectural lighting, science projects, ...
  • One to maximum four 1W LED's
  • 350mA constant current source
  • Input voltage: 6..12VAC/9-18VDC
  • Power consumption: 650mA max

Read the fully Illustrated Manual for VM143/1W

PDF Download

Transformer



Case



Dimensions

45 x 30 x 16mm

Weight

kg


Power up to four 1W high-power LED's (not incl.)
Order Code Each
VM143/1WVelleman 1W Power LED Driver Module7.95
