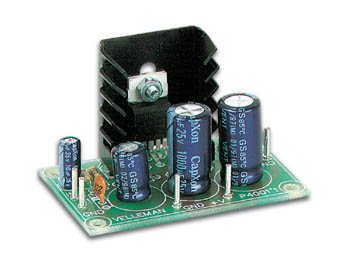

Velleman 7W Mono Audio Amplifier Module Velleman Kits

7W Mono Amplifier Kit

Specification Features:
  • Music power output: 7W / 4ohm
  • RMS output: 3.5W / 4ohm or 2W / 8ohm
  • Total harmonic distortion: 0.05% (1W / 1kHz)
  • Frequency response: 20Hz to 20kHz (-3dB)
  • Signal/noise ratio: 86dB (A weighted)
  • Input sensitivity: 40mV / 150Kohm
  • Overload and short-circuit protected
  • Supply voltage: 15VDC (8 to 18VDC possible) / 0.5A

Read the fully Illustrated Manual for WMAH114

 PDF Download

Transformer

300-825

Case



Dimensions (PCB)

55 x 35mm

Weight

kg

This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4 ohms. The IC is fully protected against overheating and short circuits. A conventional direct current is sufficient as power supply. For suitable loudspeakers see our range in the sounder section of this website.
Order Code   Each
WMAH114 Whadda 7W Mono Audio Amplifier Module 7.40
