Velleman Compact USB Interface Card

Velleman Compact USB Interface Card

Specification Features:

  • 5 digital inputs (0= ground, 1= open) (on-board test buttons provided)
  • 2 analogue inputs with attenuation and amplification option (internal test +5V provided)
  • 8 digital open collector output switches (max 50V/100mA) (on-board LED indication)
  • 2 analogue outputs:
    • 0 to 5V, output resistance 1K5
    • PWM 0 to 100% open collector outputs max 100mA / 40V (on-board LED indication)
  • General response time: 2ms per command
  • Power supply: through USB approx. 70mA

Read the fully Illustrated Manual for WPI110N

PDF Download

Transformer



Case



Dimensions

110 x 80 x 20mm

Weight

kg

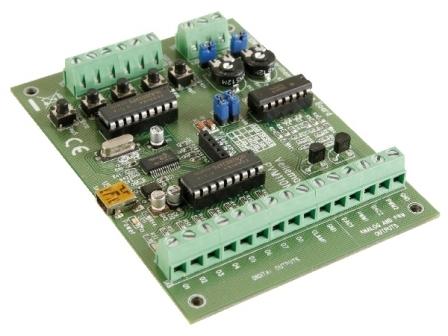

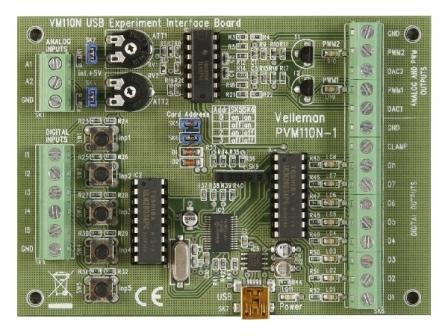

The WPI110N interface board has 5 digital input channels and 8 digital output channels. In addition, there are two analogue inputs and two analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC's USB connectors. All communication routines are contained in a Dynamic Link Library (DLL) K8055D.DLL. You may write custom Windows (XP or higher) applications in Delphi, Visual Basic, C++ Builder or any other 32-bit Windows application development tool that supports calls to a DLL. Source code for Visual Basic , Visual C++, Visual C#, Excel, Delphi and Borland C++ Builder included.

Additional software to up grade and improve this product is available from the Velleman support section on there website.

iPhone/iPad app used for the Velleman K8055N & WPI110N USB Experiment Interface Board. Android version of the demonstration app used for the Velleman K8055N & WPI110N USB Experiment Interface Board. Download the application here: K8055N Android application.

Order Code   Each
WPI110N Velleman Compact USB Interface Card Module -
