Velleman PCSU02 Mini 2-Channel USB Oscilloscope

PCSU02 Mini 2-Channel Oscilloscope

PCSU02 Oscilloscope

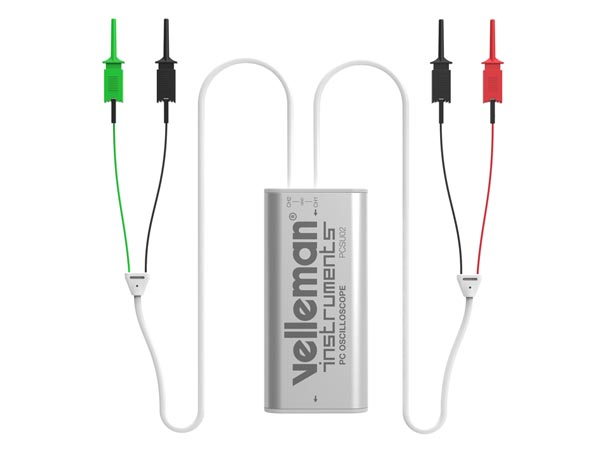

Velleman PCSU02 USB Oscilloscope

Velleman 2-Channel USB Oscilloscope

PCSU02 Mini 2-Channel Scope

Specification Features:

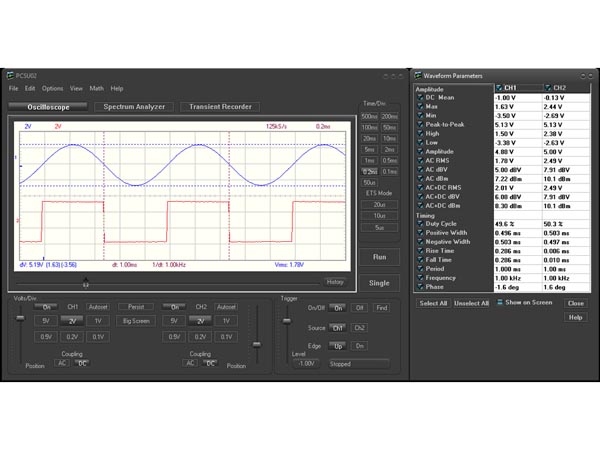

  • Oscilloscope:
    • bandwidth: DC to 2 x 500 kHz ±3 dB
    • input impedance: 100 kO /20 pF
    • maximum input voltage: 30 V(AC + DC)
    • time base: 5 µs to 500 ms per division
    • input range: 100 mV to 5 V/division
    • input sensitivity: 3 mV display resolution
    • readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
    • record length: 2 x 1k samples
    • sampling frequency: 50 Hz to 2.5 MHz
    • sample history function
    • auto set-up function
    • pre-trigger function: on 50 µs/div .. 500 ms/div ranges
    • persistence options: colour graded, variable and infinite

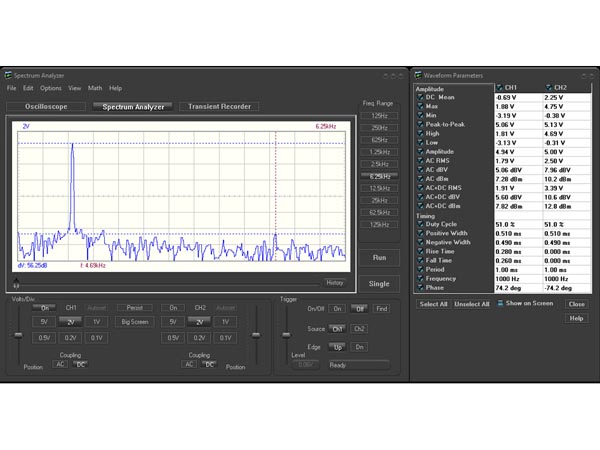

  • Spectrum analyser:
    • frequency range: 0 .. 125 Hz to 125 kHz
    • operating principle: FFT (Fast Fourier Transform)
    • FFT resolution: 512 lines

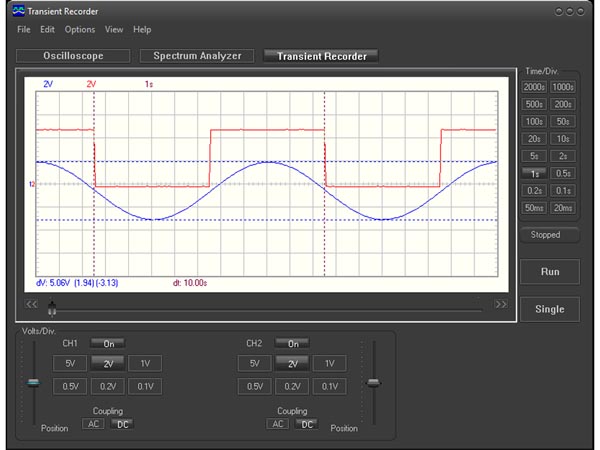

  • Transient recorder:
    • time scale: 20 ms/div to 2000 s/div
    • max. recording time: 9.4 h/screen
    • automatic storage of data
    • record and display of screens
    • max. number of samples: 100/s
    • min. number of samples: 1 sample/20 s
  • General information:
    • markers for: amplitude/voltage and frequency/time
    • input coupling: DC and AC
    • 8 bit resolution
    • storage of display and data
    • test leads and USB cable included
  • Minimum system requirements:
    • Windows® XP, Vista, 7, 8 (and 10 by using a workaround option)
    • mouse (or mouse pad)
    • free USB port 1.1 or 2.0

Read the fully Illustrated Operational Manual for PCSU02

PDF Download

Probe

Supplied

Power Supply

from PC

Dimensions

85 x 40 x 14 mm

Weight

g

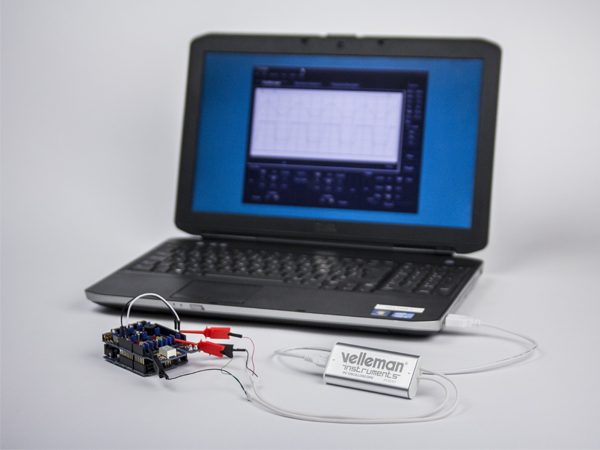

Oscilloscopes are expensive and complicated instruments? Not this one! This small and easy to use 2 channel oscilloscope has all the features of a full blown oscilloscope and it also has a bandwidth of 500 kHz ±3 dB! Complete with instructions (download), test leads and software (download) and it comes in a design enclosure.

Order Code   Each
PCSU02 Velleman Mini 2-Channel Scope 63.99
