Velleman MM112 Analogue to Digital Converter Mini ModuleVelleman Kits

Velleman MM112 Analogue to Digital Converter

Specification Features:

  • 12 bit analogue voltage to digital converter
  • Resolution: 12 Bit
  • Protocol: I2C
  • Power Supply between 2.7 and 5.5Vdc

Read the Data Sheet for MM112

PDF Download

Transformer



Case



Dimensions (PCB)

22 x 22 x 5mm

Weight

kg

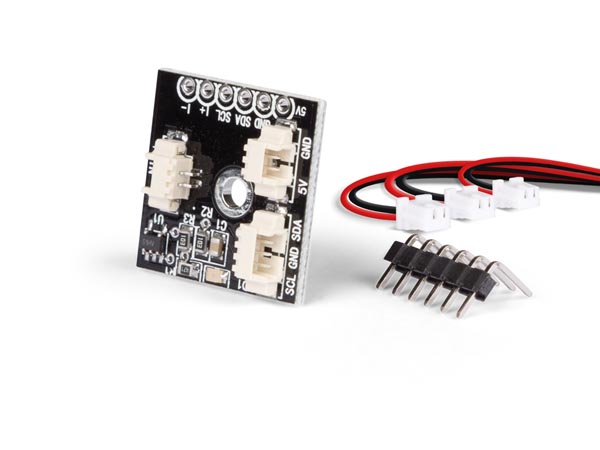

The MM112 module from Velleman is a A-D Converter. This breakout board hosts the MCP3221 analog / digital converter by Microchip. The chip used here allows the A / D voltage conversion of the input signal applied with a 12-bit resolution (4096 values so). The conversion result is a function of the power supply voltage, in the sense that the precision and consequently the sampling input signal dynamics depends on the power supply voltage.
Order Code Each
MM112Velleman Analogue to Digital Converter Mini Module9.75
