Light Sensor

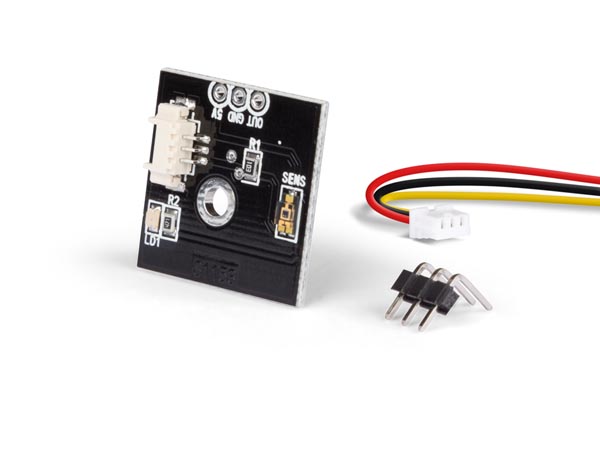

MM109 Light Sensor
Specifications:
ModelMM109
Detection60°
OutputDark 0.5V

Bright 5V

Current20mA
Power Supply5Vdc
Cable Length100mm
Dimensions22 x 22 x 5mm
Weightg
Download Handbook >PDF Download
The MM109 Light sensor module from Velleman. Based on Vishay’s TEMT600 detector, this breakout board is intended or those who need to test or integrate a detection system for the lighting environment. The TEMT6000 is a silicon NPN phototransistor, in a SMD execution, whose contacts’ arrangement is consistent with the one adopted by many modern components: no pins, but L-shaped contacts that start from the side and go on under the body. The phototransistor is sensitive to the light’s visible spectrum; the sensitivity is guaranteed within a ± 60° angle, with respect to the perpendicular line to the said surface.
Order Code Each
MM109Velleman Light Sensor Module8.50
