Velleman Electronic Record/Playback Mini Kit Velleman Kits

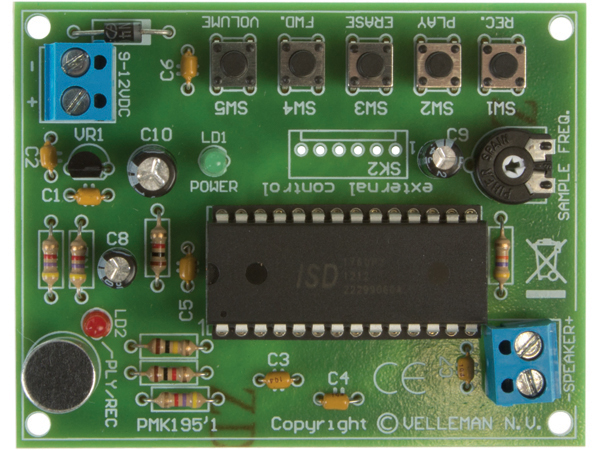

Velleman Electronic Record/Playback Mini Kit

Electronic Record/Playback includes Loudspeaker

Specification Features:

  • Recording time between 30 and 90 s (adjust the sample rate)
  • On-board microphone
  • 57mmØ speaker included
  • Using the speed adjustment, a "funny voice" can be created
  • External open-collector trigger inputs for recording, playback, delete, next, and volume
  • Power supply : 9 ... 12 VDC or with a 9V battery (PP3)
  • Power consumption:
    • max. 150mA during playback
    • max. 6mA during standby!
  • Adjustable sampling rate: 5…12 kHz
  • Speaker output: 500 mW max., 8 ohm
  • Nominal recording time: 60 seconds

Read the fully Illustrated Assembly Manual for WSAH195

PDF Download

Transformer



Case



Dimensions

77 x 60 x 15mm

Weight

88g


High-quality, natural voice/audio reproduction. Can be used to greet visitors, play pranks, warn burglars. Microphone and 57mm loudspeaker included. Record time between 30 and 90 seconds per module. Line output to drive separate amplifier, external trigger to play message and speed control to create funny messages.
Order Code   Each
WSAH195 Whadda Electronic Record/Playback Mini Kit 13.50
