Velleman Signal Generator Mini kit Velleman Kits

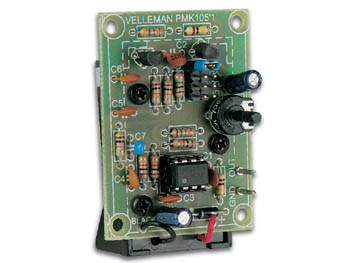

Signal Generator Mini kit

Specification Features:

  • Signal output: sine wave, triangle, square wave and integrator (selectable through jumper)
  • Signal frequency: about 1kHz (fixed)
  • Output level: adjustable from 0 to 100mVrms (LEVEL potentiometer)
  • Power supply: 9V battery (not incl.)

Read the fully Illustrated Assembly Manual for WSAH105

PDF Download

Transformer



Case



Dimensions (PCB)

56 x 40mm

Weight

kg



Order Code   Each
WSAH105 Velleman Signal Generator Mini kit 5.10
