Velleman Arduino In/Out Shield Velleman Kits

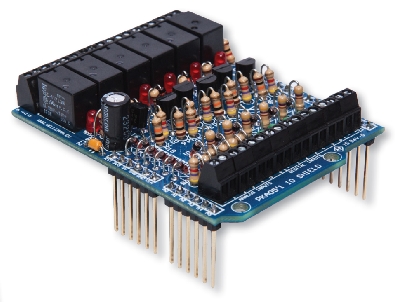

Velleman I/O Shield

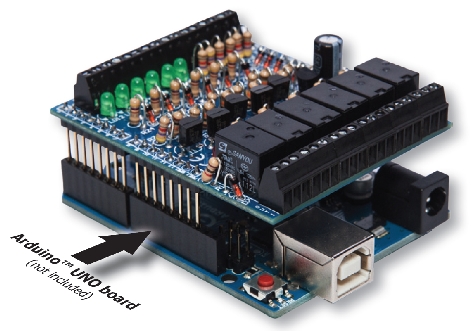

Velleman I/O Shield fitted to Arduino UNO Board

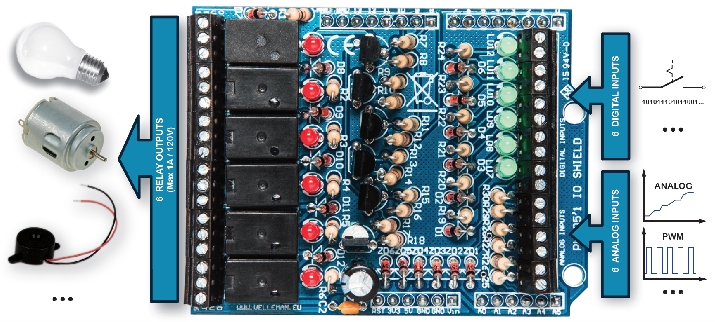

Velleman I/O Shield diagram

Specification Features:
  • 6 relay outputs
  • 6 analogue inputs
  • 6 digital inputs
  • Downloadable sample sketch
  • Stackable design: the shield can be stacked with other shields
  • Large user community
  • 1 A (max.) load per output
  • 120 V max. per output
  • Uses pin 8 to 13 as outputs, pin A0 to A5 as Analogue inputs, and pin 2 to 7 as digital inputs

Data Sheet for WPK05

 PDF Download

Power Supply



Case



Dimensions

70 x 55 x 30mm

Weight

kg

A simple plug in self assemble kit (Shield) general purpose INPUT - OUTPUT module for use with an Arduino™ UNO. (Arduino motherboard not supplied). See Arduino Section for suitable Boards
The Velleman WPK05 is available as a ready built module WPSH05
Order Code   Each
WPK05 Whadda In/Out Shield for Arduino™ UNO Board 21.48
