Velleman Arduino Ethernet Shield Velleman Kits

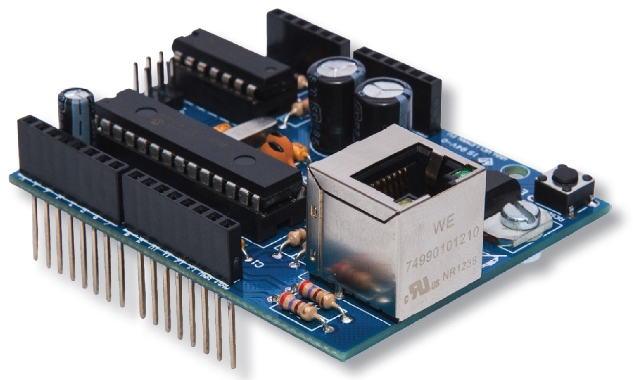

Velleman Ethernet Shield

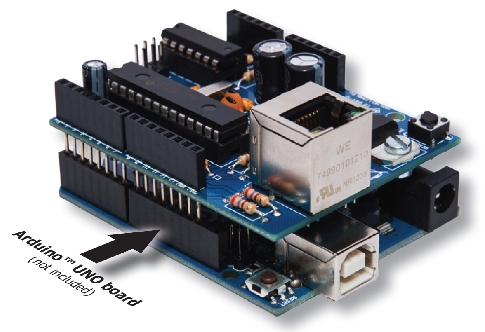

Velleman Ethernet Shield mounted on Arduino UNO

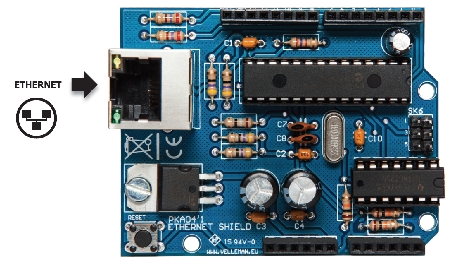

Velleman Ethernet Shield connection details

Specification Features:
  • 2 channels
  • Choose between an external or internal (Vin) power supply
  • Based on the dual full bridge driver L298P
  • Downloadable sample sketch
  • Stackable design: the shield can be stacked with other shields
  • Large user community
  • 2.5 A (max.) output current (each channel)
  • 50 V (max.) external power supply input
  • Used pins on an Arduino™ UNO board can be selected to accommodate for other stacked shields

Data Sheet for KA04

 PDF Download

Power Supply



Case



Dimensions

75 x 55 x 30mm

Weight

kg

A simple plug in self assemble kit (Shield) that allows you to configure your Arduino as a simple web server or let it get data from the worldwide web with an Arduino™ UNO. (Arduino motherboard not supplied). See Arduino Section for suitable Boards
The Velleman KA04 is available as a ready built module VMA04
Order Code   Each
WPK04 Velleman Ethernet Shield for Arduino™ Board 22.99
