Velleman Arduino Audio Shield Velleman Kits

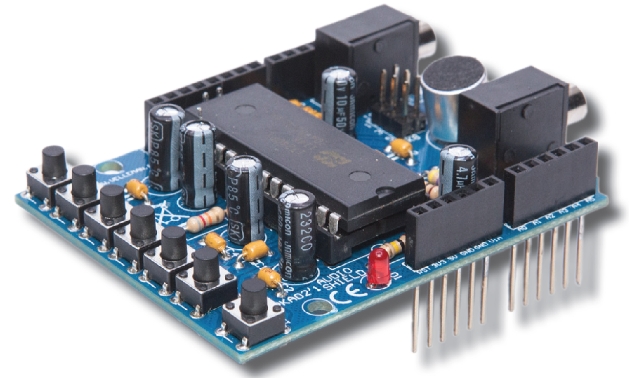

Velleman Audio Shield for Arduino UNO

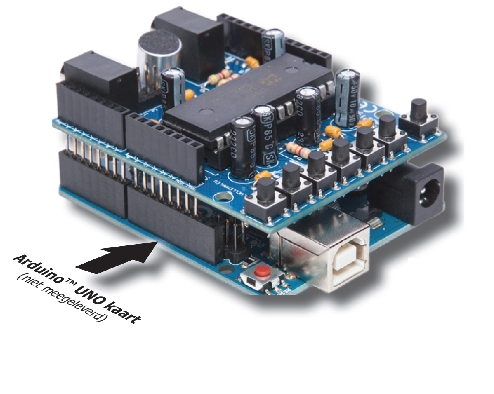

Velleman Audio Shield fitted on UNO Module

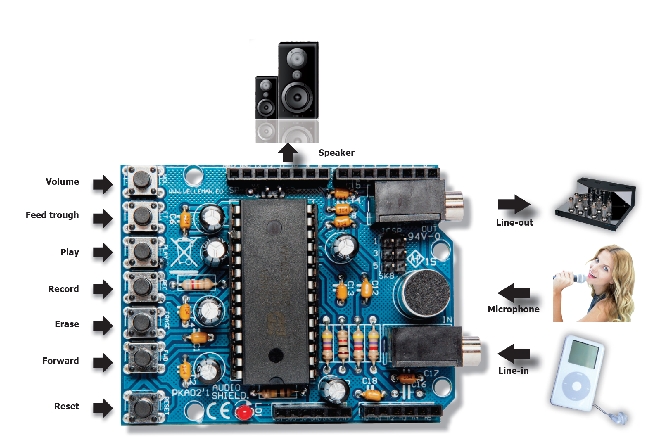

Velleman Audio Shield Configuration

Specification Features:
  • 60 second recording time
  • Start playback, record,… via on-board buttons or via Arduino™ UNO
  • Playback via a speaker or a line output
  • Downloadable sample sketch and library
  • Stackable design: the shield can be stacked with other shields
  • Large user community
  • Audio sample frequency: 8 kHz
  • Uses pin 10 on an Arduino™ UNO board as a Chip Select
  • Uses the ICSP pins on an Arduino™ as a serial connection to the shield to free up I/O pins
  • Memory write up to 100.000 X
    		•

    Data Sheet for KA02

    		 PDF Download

    Power Supply



    Case



    Dimensions

    80 x 55 x 30mm

    Weight

    kg

    A simple plug in self assemble kit (Shield) to record your voice via a built-in microphone or a line input with an Arduino™ UNO. (Arduino motherboard not supplied). See Arduino Section for suitable Boards
    The Velleman KA02 is available as a ready built module VMA02
    Order Code   Each
    KA02 Velleman Audio Shield for Arduino™ Board 12.95
