Velleman K8800 Vertex Delta 3D Printer KitVelleman Kits

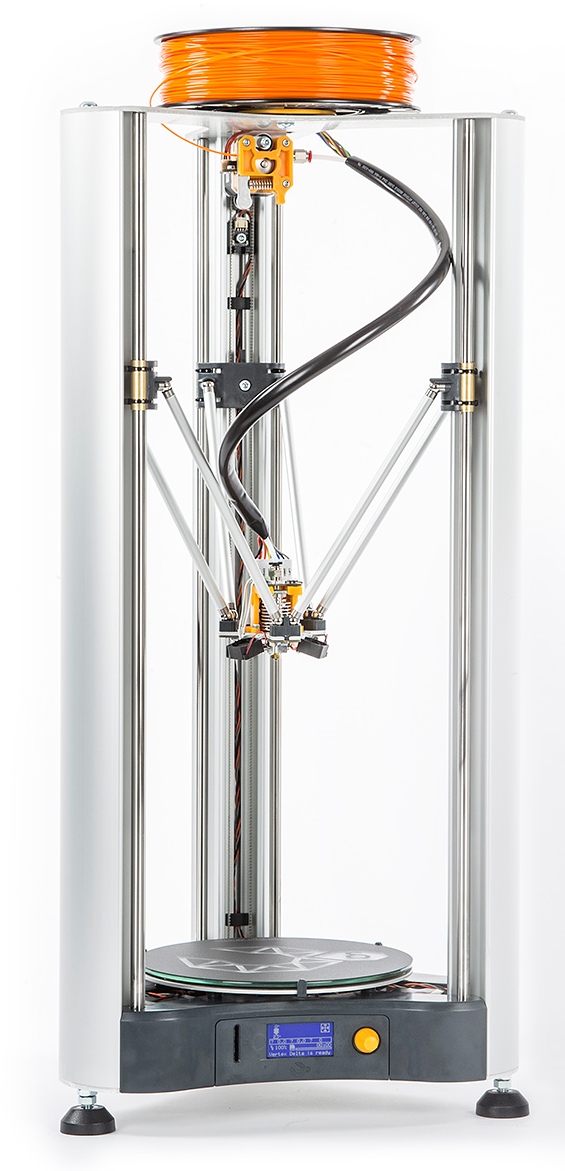

K8800 Vertex Delta 3D Printer

Vertex Delta Printer

Specification Features:

  • Printing:
    • print technology: Fused Filament Fabrication (FFF - FDM)
    • layer resolution: standard 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
    • large build volume: 200 mm build platform diameter, 225 mm build height
    • print speed: 20-50 mm/s (can go up to 75 mm/s)
    • travel speed: 180-200 mm/s
    • build plate surface: removable layer of BuildTak™ (K8800-BT)
    • filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm) - open filament policy
    • prints: PLA, ABS, TPU, PET and others
    • nozzle: E3D compatible
    • nozzle diameter: 0.35 mm (one nozzle supplied)
    • maximum nozzle operating temperature: 295°C
    • bed compensation: automatic bed compensation performed by the nozzle (no manual calibration needed)
    • calibration: automatic first-time set-up calibration
    • couplers: backlash free magnetic effector-couplers
    • advanced safety features: auto shutdown when print head detaches or temperature is incorrect (most unlikely)
    • filament run out detector: automatic pause and reload when printer runs out of filament
    • change filament function while printing: this means that you can print objects with multiple filaments/colours
    • effective pause function: pause your print job without nozzle leakage
    • end stops: infrared based end stops
  • Software:
    • firmware: modified Open Source Marlin 3D Printer, firmware is user upgradable
    • software: custom Repetier version (Windows) - Cura profiles (Mac)
  • Hardware:
    • dimensions: W 35 x D 35 x H 77 cm (without filament spool)
    • frame: rigid aluminium extrusion risers and 4 mm aluminium top and bottom plates for a sturdy frame and precision ground 100 mm vertical rods and brass bushings
    • fully Open-Source (hard- and software)
    • weight: 10 kg
    • ambient operating temperature: max. 30°C
    • storage temperature: -10°C to +50°C
    • hybrid kit: quick and straightforward build, no soldering required
  • Electrical:
    • communication: SD card or USB 2.0 (automatic SD card recognition)
    • controller board: AVR ATmega2560 based
    • display: 128 x 64 px graphic display with blue backlight



Watch Video Clip >

Velleman Delta Printer kit

Read the fully Illustrated Assembly Manual for K8800

PDF Download

Filament

ABS and PLA (Use Only Velleman Filament Wire)

Power Supply

100 - 240 VAC 50-60 Hz 90W max

Dimensions

mm

Weight

kg

 https://youtu.be/FtF3quCa2Uo

The Vertex Delta is an all-round and reliable 3D printer designed to print refined objects to complete your projects.

Aside from the excellent print quality and user-friendliness, the Vertex Delta also comes with a lot of innovative perks to make your 3D printing experience more engaging and pleasant. Advanced safety features, a filament run out detector, a mid print filament replacement function and automatic calibration and bed compensation are only a few of the latest technological additions.

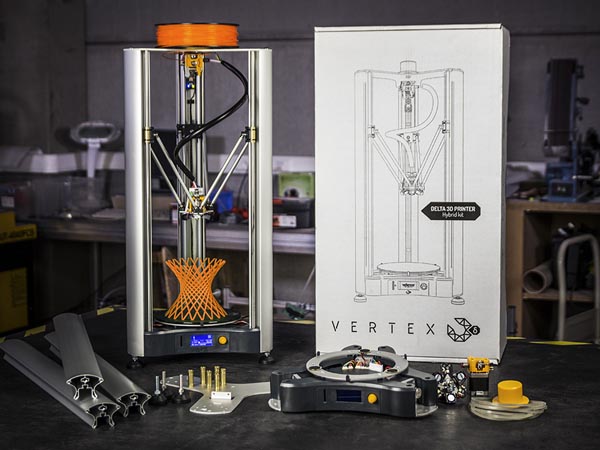

This Vertex comes as a hybrid kit (Modular) which means that after a straightforward and quick assembly, the K8800 can be assembled in a coupler of hours, no soldering required. Then the Delta 3D printer is ready to run. And don't worry about a precise build, because this device will take care of all necessary procedures to ensure a perfect first print.

Choose for reliability and for making quality 3D projects, choose Vertex and make it happen!



Order Code Each
K8800Velleman Vertex Delta 3D Printer524.99
