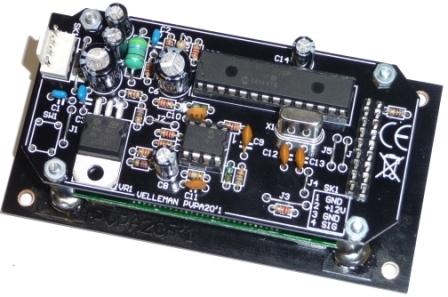

Velleman Audio Analyser KitVelleman Kits

Velleman Audio Analyser Kit

Velleman Audio Analyser Kit

Specification Features:

  • Auto or manual range selection
  • Peak-hold function
  • Speaker impedance selection
  • Language selection
  • White backlit LCD (128 x 64 pixels)

  • Easy panel mounting

  • Power measurement into 2, 4 or 8 ohms

  • Range: 300mW to 1200W @ 2 ohms

  • Sensitivity: -34dBu (15.5mV rms)

  • Max. input level: 50Vrms @ 220k

  • Frequency range: 20Hz to 20kHz

Read the fully Illustrated Assembly Manual for K8098

PDF Download

Power Supply

12Vdc (75mA)

Case



Dimensions

98 x 51 x 35mm

Weight

0.260kg

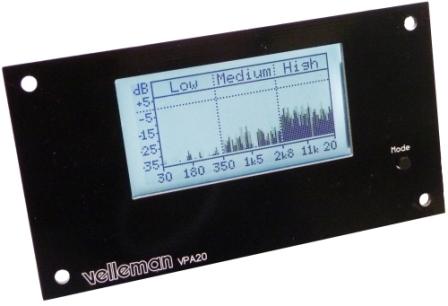

A small compact spectrum analyser, suitable for panel mounting or fitting in to existing equipment.
Order Code Each
K8098Velleman Audio Analyser Kit24.95
