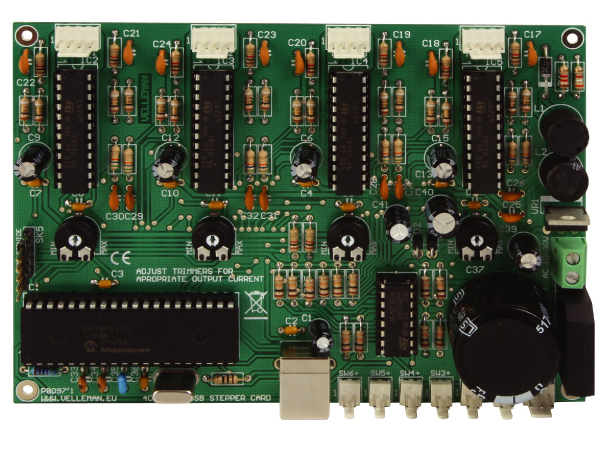

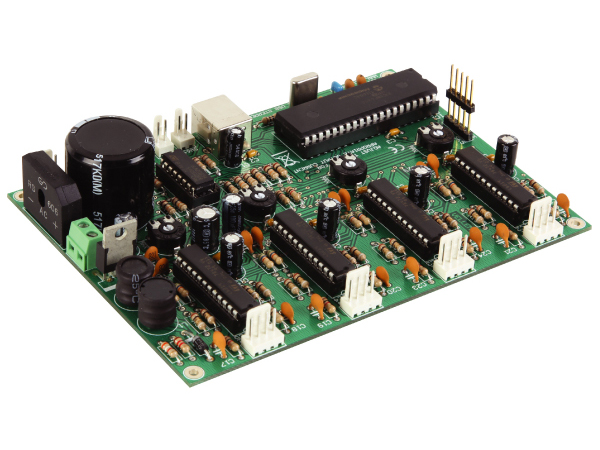

Specification Features:

• Capable of driving 4 stepper motors
• Suited for bipolar motors
• Current of the motor can be adjusted (trimmer)
• Over current protection sensing
• Onboard switch mode supply
• USB connection: control the motor using your computer
• DLL file supplied to write your own software
• Includes board to wire connections
• Power output: 750mA continuous, ( 1A peak)
• Wide range AC - power input: 5 ... 30V
• 5 dry-contact inputs
• 1 logic open collector output
• Power supply: 10 ... 30VAC

Transformer

Case

Dimensions (PCB)

140 x 100 x 30mm

Weight

kg

While the motor turns you can simultaneously check the status of the dry-inputs (ex. emergency stop signal, limit detection...). Use the switch inputs to test the motor. Can be used in every application where positioning is needed (for example, plotter, printer, valves, automations …).

Additional software to up grade and improve this product is available from our download section on this website.
