Velleman PIC Programmer Board Kit Velleman Kits

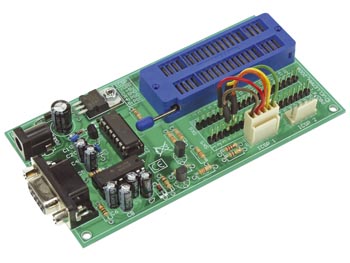

PIC Programmer Board Kit

Specification Features:
  • Onboard configurable 40 pin. ZIF socket
  • Microcontroller selection using patch jumper
  • Easy to use programming PICprog2006™ software included
  • SUBD connector set included
  • Minimum system requirements: IBM Compatible PC, Pentium or better, Windows™ NT/2000/XP, CDROM drive and free serial RS232 port required.
  • Power supply: 15V DC, min. 300mA
  • Serial port connector: 9 p. SUBD

Read the fully Illustrated Assembly Manual for K8076

 PDF Download

Transformer



Case



Dimensions (PCB)

132 x 65mm

Weight

kg

This board can program a wide range of Microchip® PIC™ microcontrollers, currently supported controllers are PIC10F200, PIC12C508A, PIC12CE518, PIC12F629, PIC12F675, PIC16F54, PIC16F84A, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F874, PIC16F876, PIC16F877, PIC16F627, PIC16F627A, PIC16F628, PIC16F628A, PIC16F648A,  PIC16F630, PIC16F676 and PIC18F2550. (See our Microcontroller Section for suitable controllers)

The Velleman K8076 is available as a ready built module VM134.

Additional software to up grade and improve this product is available from our download section on this website.
Order Code   Each
K8076 Velleman PIC Programmer Board Kit 17.85
