Velleman DC Controlled Dimmer Kit Velleman Kits

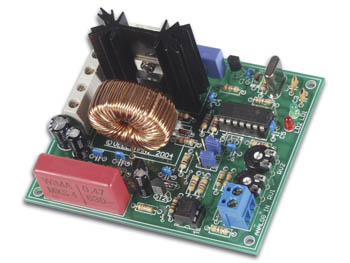

DC Controlled Dimmer Kit

Specification Features:

  • Simple brightness adjustment by means of a DC voltage
  • Optically isolated adjustment input
  • Pre-set adjustment for full brightness
  • Suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
  • "Soft start" feature to ensure lamp longevity
  • Transformer protection in case of defective light sources
  • LED status indication
  • Adjustment voltage: 0 to 12Vdc max.
  • Max. adjustment current: 2.25mA at adjustment voltage of 12V
  • Suppression of radio & TV interference according to EN55015
  • Operating voltage: 110-125V or 230-240V AC (50/60Hz)
  • Max. load: 750W/230V or 375W/110V, 0-98% adjustable
  • Max. phase shift with inductive load: 30°

Read the fully Illustrated Assembly Manual for K8064

PDF Download

Transformer



Case



Dimensions (PCB)

90 x 75mm

Weight

kg



Order Code   Each
WSL8064 Velleman DC Controlled Dimmer Kit 15.23
