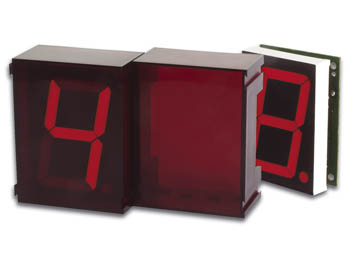

Velleman 2 Modular Digits with Serial Interface KitVelleman Kits

2 Modular Lights with Serial Interface Kit

Specification Features:

  • Bright, red, jumbo-sized 7-segment displays (57mm).
  • Complete with snap-in enclosure
  • Multiple units can be linked in an easy way to create larger readouts for e.g. score-keeping, timing, counting, ...
  • Easy platform-independent control via RS232 three-wire interface
  • Up to 255 units can be separately addressed
  • Tested with distances of up to 50m between PC and displays
  • Power supply: 9 to 12Vdc / 120mA per display
  • RS232 interface: 2400baud / 8 data bits / no parity / 1 stop bit

Read the fully Illustrated Assembly Manual for K8063

PDF Download

Transformer



Case



Dimensions

 74 x 58.5 x 32mm

Weight

kg


PCUSB6 USB to serial interface available. Additional software to up grade and improve this product is available from our download section on this website.
Order Code Each
K8063Velleman 2 Modular Digits with Serial Interface Kit19.85
