Velleman 8-Channel Relay Card KitVelleman Kits

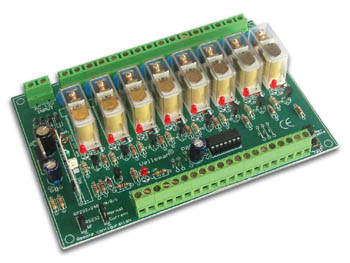

8-Channel Relay Card Kit

Specification Features:

  • 8 high quality relay contacts: 5A/230Vac max.
  • Relay outputs are transient suppressed using VDR's
  • LED confirmation on each relay contact
  • 8 drive inputs to use with open collectors or regular switches
  • RS232 input to drive the card with computer or terminal: baud rate: 2400, no parity, 8 data bits, 1 stop bit, high or low impedance selection (10K or 1K)
  • Optional RF driving possibility using RX433N type module (not simultaneous with RS232) together with K8058 eight channel RF remote control
  • Power output: unregulated 12Vdc / 200mA
  • Power supply: 12Vac / 500mA (including 12V output

Read the fully Illustrated Assembly Manual for K8056

PDF Download

Transformer



Case

B8006

Dimensions (PCB)

160 x 107mm

Weight

kg


This relay card can be used in several ways : stand alone card, addressed by switches or open collector outputs or remote controlled through RS232. Since the card can be addressed using RS232 commands, you may write custom applications in any programming language on any platform. Test software and additional software to up grade and improve this product is available from our download section on this website.

The Velleman K8056 is also available as a ready made module VM129


Order Code Each
K8056Velleman 8-Channel Relay Card Kit29.95
