Velleman Stand Alone Controller for 3D PrinterVelleman Kits

Stand alone K8200 printer controller

Velleman Stand Alone Controller for 3D Printer

VellemanVM8201 Controller for 3D Printer

VM8201 3D Printer Controller

Specification Features:

  • Fully operate your 3D printer with this module! No computer needed (slicing of 3D object and saving to SD-card still needs to be done on a computer).

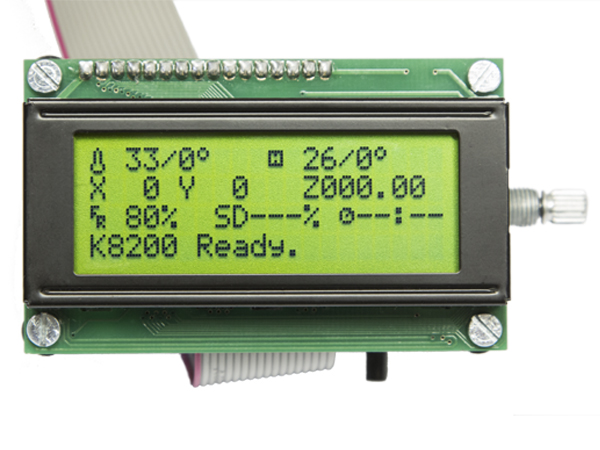

  • 4 x 20 character LCD display with backlight.
  • Prints .GCODE files that are saved on a regular SD-card (SD-card NOT INCLUDED).
  • Encoder based control.
  • Real time temperature display and control of the extruder and heated bed temperature.
  • Connected to the K8200 controller board with the included flat cable, no extra power supply needed.
  • Fully assembled and tested unit. Connection cable requires soldering.
  • SD card slot.
  • Reset button.

Read the fully Illustrated Manual for VM8201

PDF Download

Power Supply

from printer

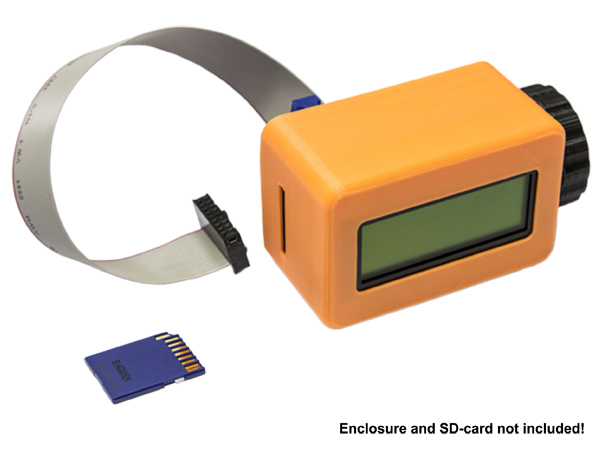

Case

Not Supplied (Make it yourself with printer)

Dimensions

80 x 50 x 45mm

Weight

kg



Additional software to up grade and improve this product is available from the Velleman support section on there website.

Order Code Each
VM8201Velleman Stand Alone Controller for 3D Printer55.95
