Velleman 2-Channel RF Remote/ OIT LAN Control Set Module Velleman Kits

VM130V2SET

Specification Features:
  • Receiver:
    • two relay contact channels
    • connects to multiple transmitters
    • toggle or pulse function (selectable per output) (with Tuya app)
    • pulse function with turn-off timer (with Tuya app)
    • LED indicators: output (each channel) - power - Tuya status/pairing mode
    • optional transmitter: VM130V2-T
  • Transmitter:
    • two channels
    • generates unique code
    • code can easily be changed for safety purposes
    • LED transmit indicator
    • RED compliant (ETS 300-220) (approved for EU countries)
    • high brightness white LED flashlight function
    • compatible with: VM130V2-R
  • Wireless frequency: 433 MHz (RF) - 2.4 GHz (WLAN)
  • Open field range up to: 30 m
  • Please note that VM130V2SET is not compatible with its predecessor VM130N



Read the fully Illustrated Manual for VM130V2SET

 PDF Download

Receiver

 Transmitter

Power Supply

 12Vdc 300mA 12 V battery (included)
Relay 2 Relay contacts NO / NC: 5 A @ 48 VDC (resistive load) -

Case

 Supplied Supplied

Dimensions

 78 x 78 x23mm 63 x 35 x 13 mm


Weight

 g g

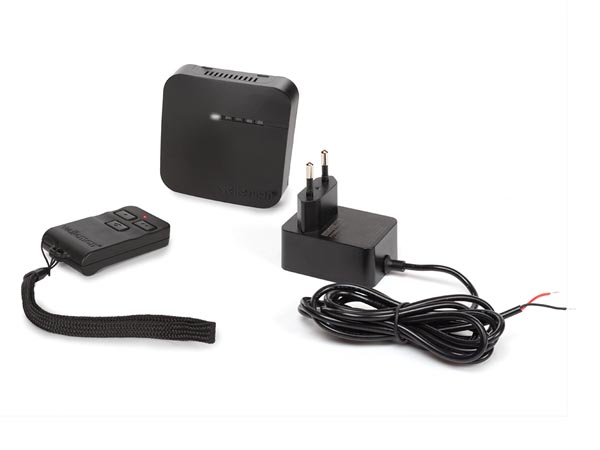

The VM130V2SET includes a compact universal receiver (the VM130V2-R) and transmitter (the VM130V2-T) that enable you to control devices from a distance of up to 30 meters! Furthermore, the receiver works with the TUYA IoT cloud, allowing you to control this set all over the world with the Tuya app and an internet connection.
Order Code   Each
VM130V2SET Velleman 2-Channel RF Remote/ OIT LAN Control Set Module 59.99
