Behringer FBQ800

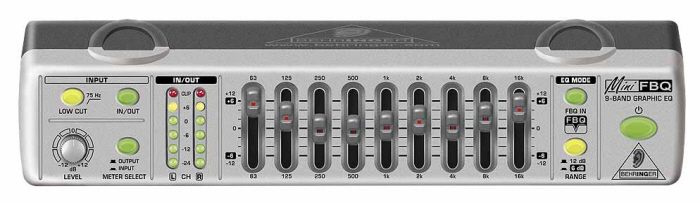

Behringer FBQ800 Graphic Equalizer



Line Input ¼" TRS Jacks and RCA Sockets

20kΩ Balanced 10KΩ (Unbalanced RCA Sockets)

Line Output ¼" TRS Jacks and RCA Sockets

120Ω Balanced Unbalanced 60Ω

Frequency Response

10Hz - 20kHz



S/N Ratio




Graphic Equalizer ±12dB

63, 125, 250, 500Hz, 1,2, 4, 8, 10, 12.5, 16kHz

Power Supply

9VDC 7 W (External Power Supplied)


243 x 48 x 120mm



Download the Handbook >
The Behringer FBQ800 is an ultra-compact 2-channel 9-band graphic equalizer. Its revolutionary FBQ (Feedback Detection System) instantly reveals critical frequencies and can also be used as an audio analyzer. Additional Low Cut filter removes unwanted frequencies such as floor rumble. An accurate 6-digit LED Input/Output meters and level control are provided for precise level indication. Long-term reliability is guaranteed with the use of high-quality illuminated faders, potentiometer and illuminated switches.

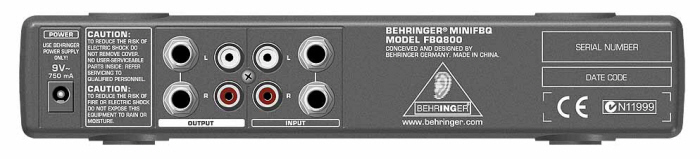

Behringer FBQ800 Graphic Equalizer (Rear)
Order Code Each
FBQ800Ultra Compact 9-Band Graphic Equalizer41.65

IMG Stage Line MEQ-115

MEQ-115 Graphic Equalizer


Line Input XLR & ¼" Jack Socket0.775V/50kΩ Balanced
Line Output XLR & ¼" Jack Sockets0.775/600Ω
Frequency Response20 - 20kHz
S/N Ratio>66dB
Low cut filter20Hz
Graphic Equalizer ±12dB25, 40, 63, 100, 160, 250, 400, 630Hz, 1, 1.6, 2.5, 4, 6.3, 10, 16kHz
Power Supply230V~50Hz 6VA
Dimensions482 x 45 x 165mm (1U)
Download Handbook >
IMG Stage Line MEQ-115 2-Channel graphic equalizer is housed in a standard 1U 19" rack case. Each channel has 15 frequency controls with centre click sliders and an overall level control. Push button switches provide channel bypass, low cut filter and select the input level (±6 or 12dB). A ground lift switch is located on the rear, LED's on each channel give an indication of peak level signals.
Stage Line MEQ-115 Graphic Equalizer
Order Code Each
MEQ-115Stage Line MEQ-115 Graphic Equalizer80.00
