2U Flight Case

Img Stage Line MR-402 Flight Case



  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 440mm

  • Maximum depth between front panel and lid is 55mm

Specifications:

Rack Size

2U

Dimensions (Internal)

460 x 100 x 500mm

Dimensions (External)

630 x 125 x 535mm

Weight

7.0kg

MR-402 is a heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks and fold down recessed handles. All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-4022U Flight Case66.00

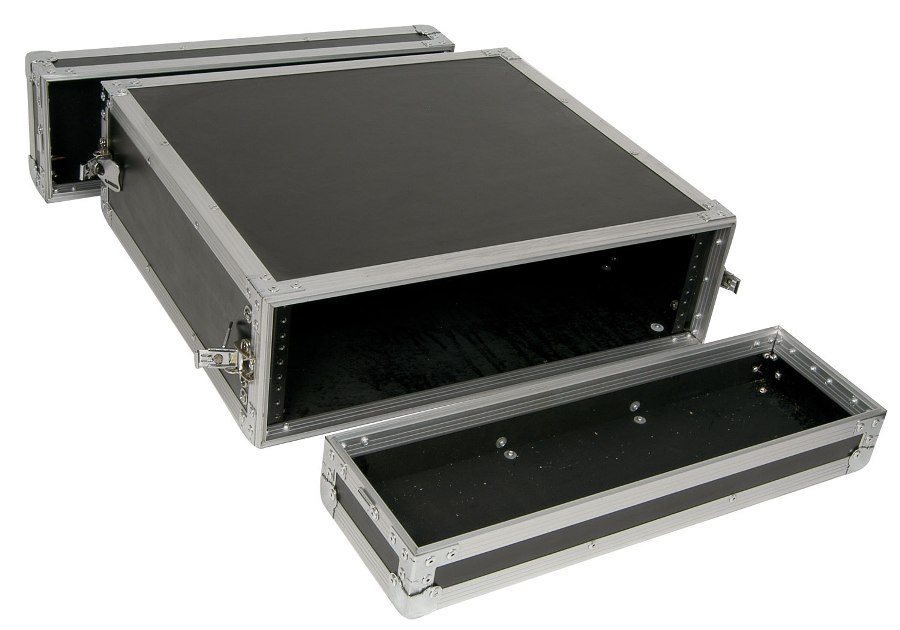

3U Flight Case

3U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 440mm

  • Maximum depth between front panel and lid is 55mm

Specifications:

Rack Size

3U

Dimensions (Internal)

470 x 150 x 500mm

Dimensions (External)

625 x 180x 535mm

Weight

7.4kg

3U light weight flight case constructed from 6mm multiplex ply. Fitted with butterfly type locks, fold down recessed handles, internal front rack mounting supports and are supplied with captive rack screws. Heavy duty chromium-plated ball corners, reinforced aluminium profile edges for maximum protection. These cases are suitable for housing single 19" power amplifiers or effects processors.
Order Code Each
396-3733U Flight Case72.15

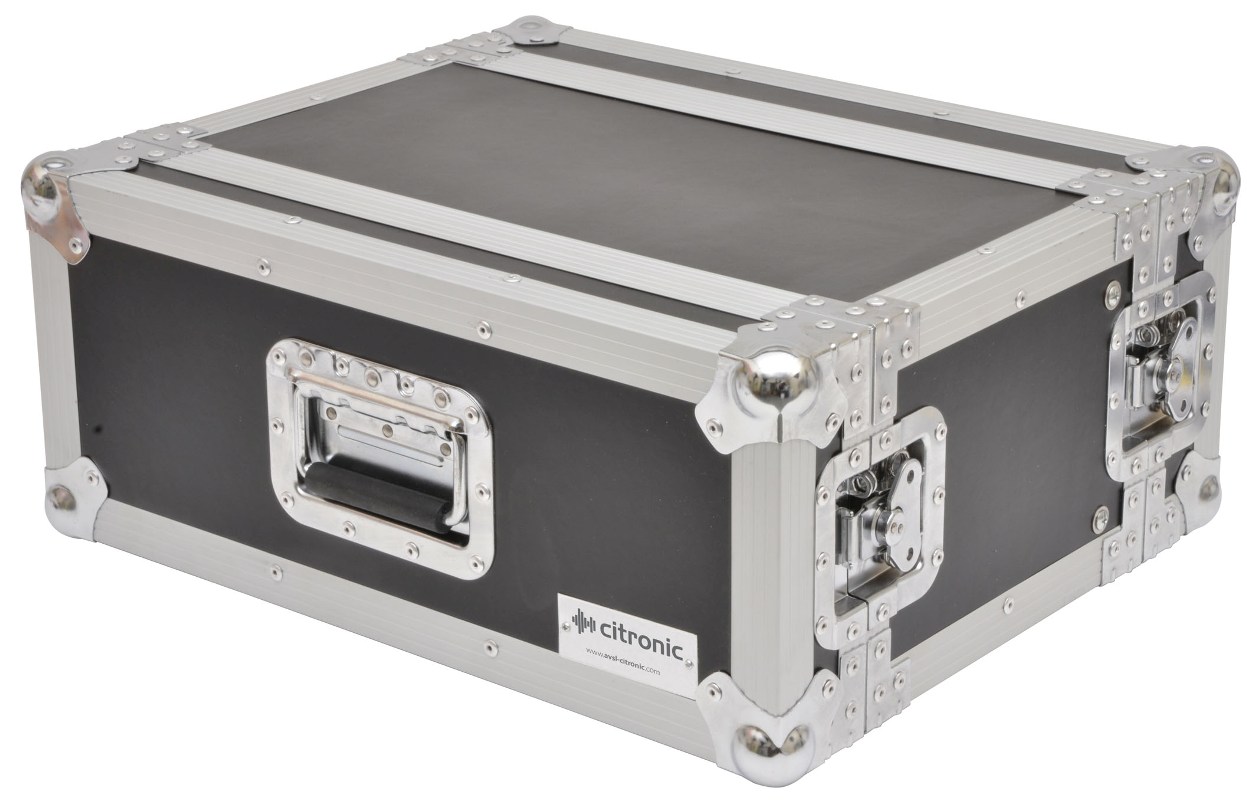

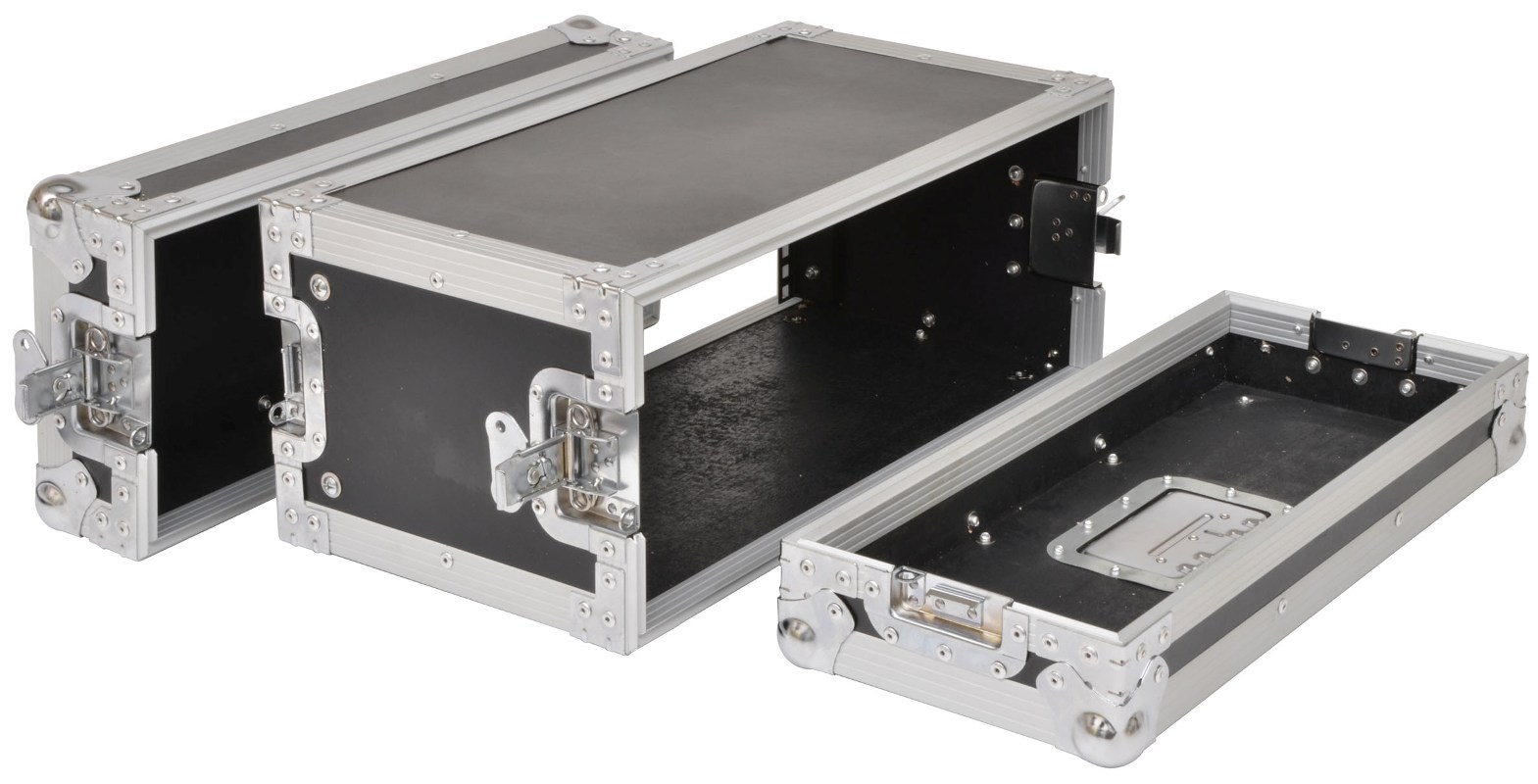

4U Flight Cases

4U Flight Case for Wireless Microphones
  • Both front and rear lids removable

  • Manufactured from 9mm Plywood

  • Fitted with heavy duty handles and protective corners

Specifications:

Rack Size

4U

Dimensions (Internal)

280 x 185 x 500mm

Dimensions (External)

280 x 185 x 500mm

Weight

9.0kg

Blank Panels >Full range of Blank Panels
4U Flight case, particular suitable for rack equipment which is not very deep. Light weight constructed from 6mm multiplex ply. Fitted with butterfly type locks, fold down recessed handles, internal front rack mounting supports and are supplied with captive rack screws. Heavy duty chromium-plated ball corners, reinforced aluminium profile edges for maximum protection. These cases are suitable for housing effects processors and radio microphones.
Flight Case for Radio Microphones
Order Code Each
396-3754U Flight Case (Short)69.23



IMG Stage Line MR-404 Flight Case
  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 440mm

  • Maximum depth between front panel and lid is 55mm

Specifications:

Rack Size

4U

Dimensions (Internal)

485 x 185 x 530mm

Dimensions (External)

535 x 225 x 580mm

Weight

9.5kg

Blank Panels >Full range of Blank Panels
4U light weight flight case constructed from 6mm multiplex ply. Fitted with butterfly type locks, fold down recessed handles, internal front rack mounting supports and are supplied with captive rack screws. Heavy duty chromium-plated ball corners, reinforced aluminium profile edges for maximum protection. These cases are suitable for housing various 19" rack mounting equipment.
Order Code Each
MR-4044U Flight Case76.74

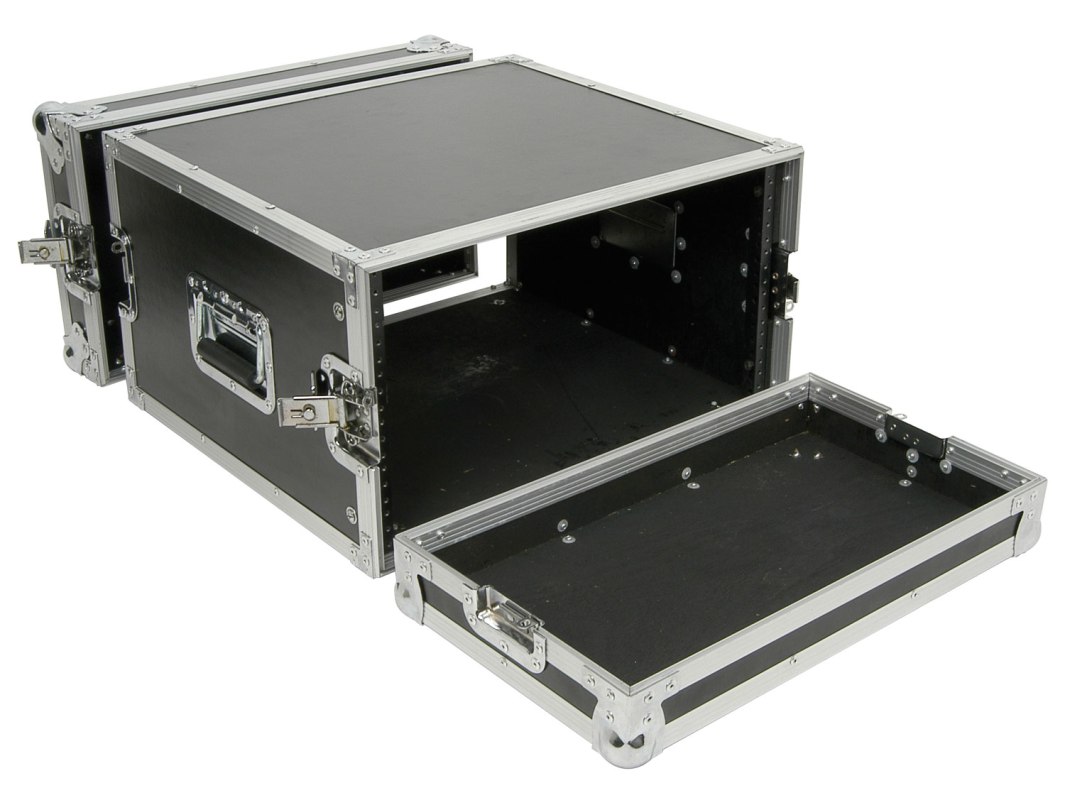

6U Flight Case

Flight Case MR-706

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

6U

Dimensions (Internal)

500 x 280 x 680mm

Dimensions (External)

550 x 330 x 720mm

Weight

15.2kg

Blank Panels >Full range of Blank Panels
MR-706 is a 6U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks and fold down recessed handles. All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-706Professional 6U 19" Flight Case108.77

8U Flight Case

8U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

8U

Dimensions (Internal)

500 x 370 x 680mm

Dimensions (External)

550 x 420 x 720mm

Weight

17.3kg

Blank Panels >Full range of Blank Panels
MR-708 is a 8U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks and fold down recessed handles. All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-708Professional 8U 19" Flight Case128.73

10U Rack Case

10U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

10U

Dimensions (Internal)

500 x 455 x 680mm

Dimensions (External)

550 x 640 x 720mm

Weight

26.3kg

Blank Panels >Full range of Blank Panels
MR-710 is a 10U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks, fold down recessed handles and four heavy duty castors (Two with Brakes). All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-710Professional 10U 19" Flight Case with Castors181.34

12U Rack Case

12U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

12U

Dimensions (Internal)

500 x 545 x 680mm

Dimensions (External)

550 x 730 x 720mm

Weight

28.1kg

Blank Panels >Full range of Blank Panels
MR-702 is a 12U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks, fold down recessed handles and four heavy duty castors (Two with Brakes). All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-712Professional 12U 19" Flight Case with Castors199.95

16U Rack Case

15U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

16U

Dimensions (Internal)

500 x 725 x 680mm

Dimensions (External)

550 x 910x 720mm

Weight

32.4kg

Blank Panels >Full range of Blank Panels
MR-716 is a 16U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks, fold down recessed handles and four heavy duty castors (Two with Brakes). All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-716Professional 16U 19" Flight Case with Castors220.12

20U Rack Case

20U Flight Case

  • Both front and rear lids removable

  • Maximum depth behind front mounting strip is 480mm

  • Maximum depth between front panel and lid is 90mm

Specifications:

Rack Size

20U

Dimensions (Internal)

500 x 900 x 680mm

Dimensions (External)

550 x 1080 x 720mm

Weight

36.4kg

Blank Panels >Full range of Blank Panels
MR-720 is a 20U heavy duty professional flight case constructed from 7 layers of multiplex plywood approximately 10mm. All models are equipped with butterfly type locks, fold down recessed handles and four heavy duty castors (Two with Brakes). All cases have chromium-plated ball corners, reinforced aluminium profile edges for maximum protection and are supplied with rack screws. These cases are ideally suited for the construction of multiple amp racks and effects racks. Used by professional event and high companies.
Order Code Each
MR-720Professional 20U 19" Flight Case with Castors267.69
