 Transformer Wiring for WMAH100-WSAH8060 Amplifier

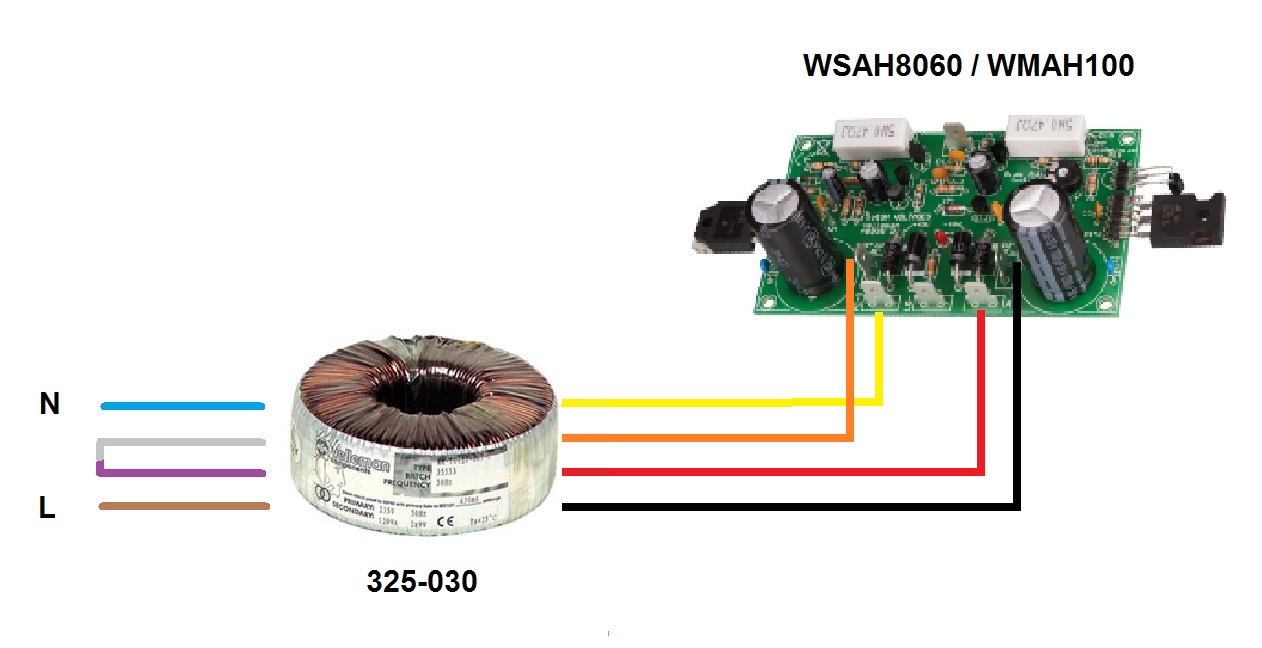

Figure 1 shows the correct wiring method connect our 120VA Toroidal transformer (325-030) to either the Whadda kit WSAH8060 or module WMAH100.

Previous Velleman kits and modules K8060 and VM100 may have different markings on the PCB

The latest kits and modules use a PCB reference P8060-2

See our full range of Electronic Modules

Figure 1
