Paradigm LM384 Stereo Amplifier



Paradigm LM384 Stereo Amplifier

Specifications:
Reference

K1450

Rated Power (RMS)5W
Frequency RangekHz
Crosstalkdb
THD %
InputmV
Output Impedance
Consumption1.3A
Power Supply12 - 26VDC
Dimensions63.5 x 50.8mm
Weightg
Technical Information >Download the Handbook for full specifications and applications

This kit uses LM384 audio power amplifiers and contains two identical amplifiers capable of delivering a gain internally fixed at 34 dB with a maximum peak current capability of 1.3A. This kit uses the 14-Pin PDIP to allow a greater max. package dissipation of 5.0W. Paradigm Technologies have designed a fully symmetrical PCB around the LM380 chipsets to ensure that maximum performance is obtained.

An upgrade kit is available using high quality passive components and also includes polyester bypass capacitors. Very high quality low ESR electrolytic capacitors, very low temperature coefficient metal film resistors, alongside the thermally stable very high quality bypass capacitors, enables this kit to deliver maximum performance and sound quality.

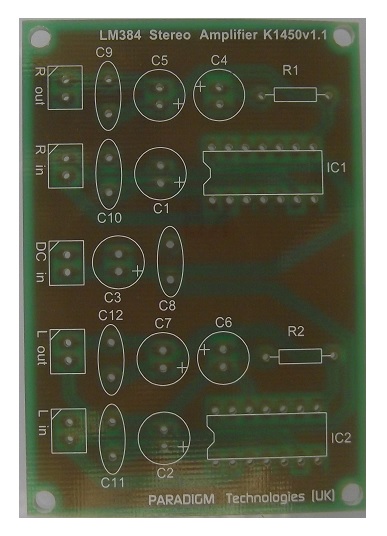

Paradigm LM384 Stereo Amplifier PCB
Related Products::




Order Code Each
PTK1450Paradigm LM384 Stereo Amplifier Kit18.33
PTK1458Paradigm LM384 Stereo Amplifier Upgrade Kit4.16
