Paradigm LM380 Stereo Amplifier



Paradigm LM380 Stereo Amplifier Kit

Specifications:
Reference

K1440

Rated Power (RMS) 8W
Frequency Range kHz
Crosstalk db
THD  %
Input mV
Output Impedance
Consumption 1.3A
Power Supply 10 - 22VDC
Dimensions 63.5 x 50.8mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

This kit uses LM380 audio power amplifiers and contains two identical amplifiers capable of delivering a gain internally fixed at 34 dB with a maximum peak current capability of 1.3A. This kit uses the 14-Pin PDIP to allow a greater max. package dissipation of 8.3W. Paradigm Technologies have designed a fully symmetrical PCB around theLM380 chipsets to ensure that maximum performance is obtained.

An upgrade kit is available using high quality passive components and also includes polyester bypass capacitors. Very high quality low ESR electrolytic capacitors, very low temperature coefficient metal film resistors, alongside the thermally stable very high quality bypass capacitors, enables this kit to deliver maximum performance and sound quality.

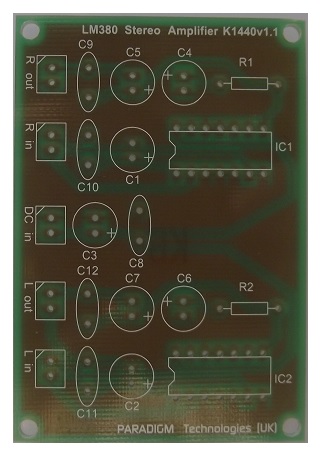

Paradigm LM380 Stereo Amplifier PCB
Related Products::




Order Code   Each
PTK1440 Paradigm LM380 Stereo Amplifier Kit 6.95
PTK1448 Paradigm LM380 Stereo Amplifier Upgrade Kit 2.85
