  Paradigm Technologies

Paradigm 6 Watt Class AB Stereo Amplifier





Specifications:
Reference

K1430

Rated Power (RMS) 6W
Frequency Range 45Hz – 20kHz
Crosstalk db
THD  %
Input mV
Output Impedance 4Ω
Consumption 2.5A
Power Supply 9.5 - 18VDC
Dimensions 63.5 x 50.8mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

The kit uses a TPA1517 stereo audio power amplifier that contains two identical amplifiers capable of delivering up to 6W per channel of continuous average power into a 4Ω load at 10% THD+N or 5 W per channel at 1% THD+N. The gain of each channel is fixed at 20dB. This kit uses the 20-pin thermally enhanced DIP package (NE). Paradigm Technologies have designed a fully symmetrical PCB around the TPA1517 chipset to ensure that maximum performance is obtained.

An upgrade kit is available to convert the basic K1430 amplifier kit in to the K1431 Ultra. This has high quality passive components and also includes polyester bypass capacitors. Very high quality low ESR electrolytic capacitors, very low temperature coefficient metal film resistors, alongside the thermally stable very high quality bypass capacitors, enables this kit to deliver maximum performance and sound quality.

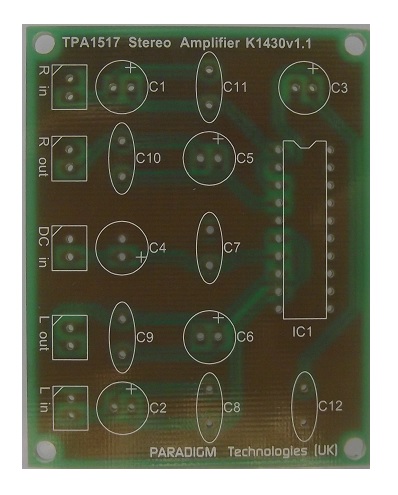

Paradigm 6 Watt Class AB Stereo Amplifier PCB
Related Products::




Order Code   Each
PTK1430 Paradigm 6 Watt Class AB Stereo Amplifier Kit 8.85
PTK1438 Paradigm 6 Watt Class AB Stereo Amplifier Upgrade Component Kit 2.90
