 Paradigm Technologies

Paradigm 10 Watt Class D Ultra SE Stereo Amplifier





Specifications:
Reference

K1421

Rated Power (RMS)10W
Frequency RangeHz
Crosstalk-70db
THD %
InputmV
Output Impedance8Ω
Consumption250mA
Power Supply10 - 26VDC
Dimensions68.6 x 73.7mm
Weightg
Technical Information >Download the Handbook for full specifications and applications

The kit uses a TPA3125D2 stereo audio power amplifier that is capable of delivering up to 10W per channel of continuous average power into a 8Ω load at 10% THD+N or 8W per channel at 1% THD+N. The gain of each channel is fixed at 20dB. This kit uses the 20-pin thermally enhanced DIP package (NE). Paradigm Technologies have designed a fully symmetrical PCB around the TPA3125D2 chipset to ensure that maximum performance is obtained.

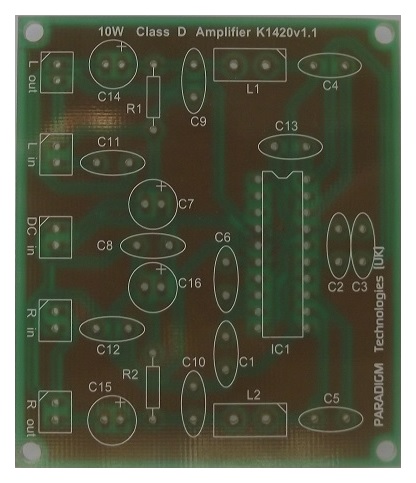

10 Watt Class D Ultra SE Stereo Amplifier PCB
Related Products::




Order Code Each
PTK1422Paradigm 10 Watt Class D Ultra SE Stereo Amplifier Kit33.32
