Paradigm 10 Watt Class Ultra D Stereo Amplifier





Specifications:
Reference

K1421

Rated Power (RMS) 10W
Frequency Range Hz
Crosstalk -70db
THD  %
Input mV
Output Impedance 8Ω
Consumption 250mA
Power Supply 10 - 26VDC
Dimensions 68.6 x 73.7mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

The kit uses a TPA3125D2 stereo audio power amplifier that is capable of delivering up to 10W per channel of continuous average power into a 8Ω load at 10% THD+N or 8W per channel at 1% THD+N. The gain of each channel is fixed at 20dB. This kit uses the 20-pin thermally enhanced DIP package (NE). Paradigm Technologies have designed a fully symmetrical PCB around the TPA3125D2 chipset to ensure that maximum performance is obtained.

An Upgrade kit of components is also available which uses higher quality passive components including polypropylene bypass capacitors - increases performance and sound quality.

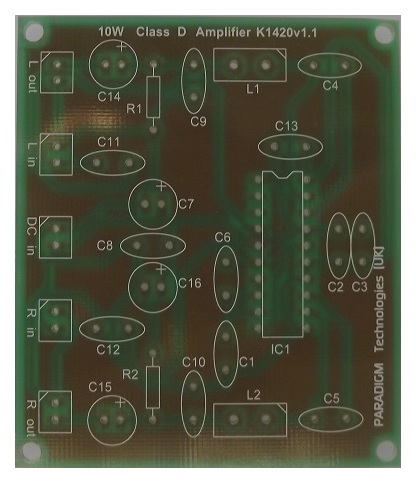

10 Watt Class D Ultra Stereo Amplifier PCB
Related Products::




Order Code   Each
PTK1421 Paradigm 10 Watt Class D Ultra Stereo Amplifier Kit 9.95
PTK1429 Paradigm 10 Watt Class D Ultra Stereo Amplifier Upgrade Component Kit 3.95
