Paradigm 10 Watt Class D Stereo Amplifier



10 Watt Class D Stereo Amplifier Kit

Specifications:
Reference

K1420

Rated Power (RMS)10W
Frequency RangeHz
Crosstalk-70db
THD %
InputmV
Output Impedance8Ω
Consumption250mA
Power Supply10 - 26VDC
Dimensions68.6 x 73.7mm
Weightg
Technical Information >Download the Handbook for full specifications and applications

The kit uses a TPA3125D2 stereo audio power amplifier that is capable of delivering up to 10W per channel of continuous average power into a 8Ω load at 10% THD+N or 8W per channel at 1% THD+N. The gain of each channel is fixed at 20dB. This kit uses the 20-pin thermally enhanced DIP package (NE). Paradigm Technologies have designed a fully symmetrical PCB around the TPA3125D2 chipset to ensure that maximum performance is obtained.

An Upgrade kit of components is also available which uses higher quality passive components including polypropylene bypass capacitors - increases performance and sound quality.

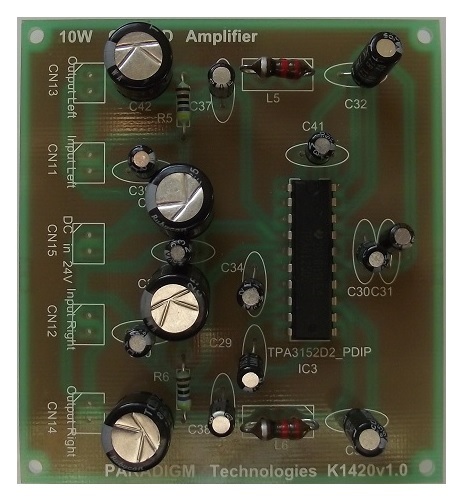

Paradigm 10 Watt Class D Stereo Amplifier PCB
Related Products::




Order Code Each
PTK1420Paradigm 10 Watt Class D Stereo Amplifier Kit24.99
PTK1428Paradigm 10 Watt Class D Stereo Amplifier Upgrade Component Kit4.15
